Processor Socket | LGA 1700 |
Compatible processor series | Intel® Core™ i7 |
Processor manufacturer | Intel |
Windows operating systems supported | Windows 10 x64 |
Audio output channels | 7.1 channels |
audio chip | Realtek ALC897 |
Motherboard chipset family | Intel |
MOTHERBOARD CHIPSET | Intel B760 |
Motherboard form factor | ATX |
Number of memory slots | 4 |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Supported memory clock speed (max) | 5333 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Depth | 304.8 mm |
Width | 243.8 mm |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Wi-Fi | No |
LAN controller | Realtek RTL8125-BG |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
ATX Power connector (24-pin) | Yes |
Power fan connector | Yes |
Front panel connector | Yes |
Chassis intrusion connector | Yes |
Front panel audio connector | Yes |
CPU fan connector | Yes |
12V power connector | Yes |
S/PDIF out connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
USB 2.0 connectors | 4 |
Drivers included | Yes |
CABLES INCLUDED | SATA |
RAID levels | 1 |
Raid Support | Yes |
Supported storage drive interfaces | SATA III |

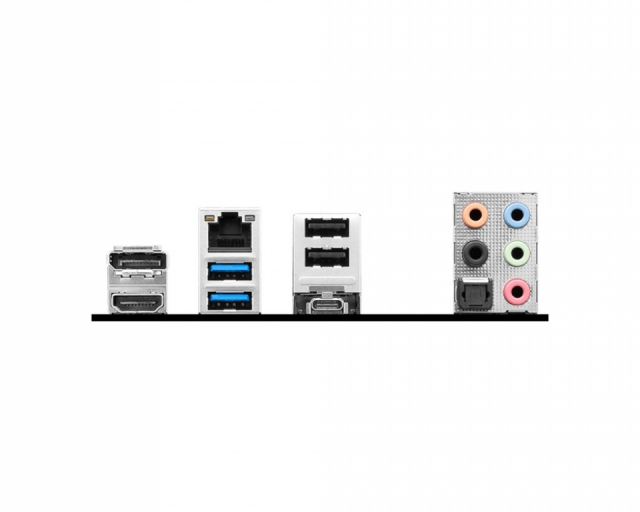

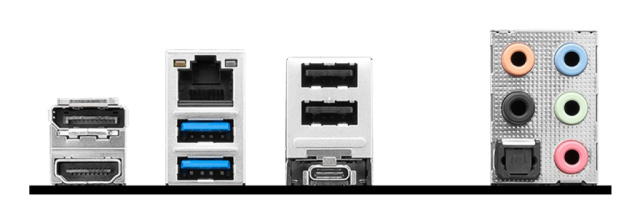

Ethernet LAN (RJ-45) ports | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 2.0 ports quantity | 4 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x4 (Gen 4.x) slots | 1 |
PCI Express x1 (Gen 4.x) slots | 2 |
