Compatible processor series | Intel® Core™ i9 |
Processor manufacturer | Intel |
Processor Socket | LGA 1700 |
Supported processor sockets | LGA 1700 |
Parallel processing technology support | Not supported |
On-board graphics card | No |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Windows operating systems supported | Windows 10 |
audio chip | Realtek ALC897 |
Motherboard chipset family | Intel |
Product colour | Black |
MOTHERBOARD CHIPSET | Intel H610 |
Component for | PC |
Number of memory slots | 2 |
Supported memory clock speeds | 5600 |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Supported memory clock speed (max) | 5600 MHz |
ECC сompatibility | Non-ECC |
Maximum internal memory | 96 GB |
Depth | 243.8 mm |
Width | 211 mm |
Ethernet interface type | Gigabit Ethernet |
Wi-Fi | No |
Ethernet LAN | Yes |
Number of SATA III connectors | 4 |
ATX Power connector (24-pin) | Yes |
12V power connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Front panel audio connector | Yes |
TPM connector | Yes |
USB 2.0 connectors | 2 |
CPU fan connector | Yes |
ACPI version | 6.4 |
BIOS memory size | 256 Mbit |
System management BIOS (SMBIOS) version | 3.4 |
BIOS Type | UEFI AMI |
Drivers included | Yes |
CABLES INCLUDED | SATA |
Supported storage drive types | SSD |
Supported storage drive interfaces | M.2, SATA III |

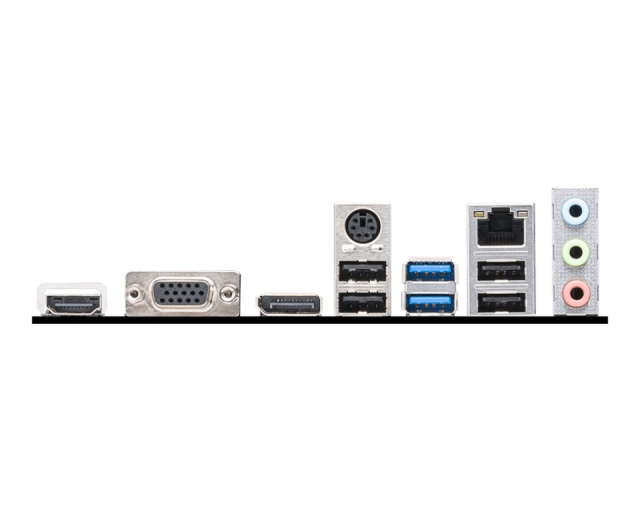

Ethernet LAN (RJ-45) ports | 1 |
HDMI version | 2.1 |
USB 2.0 ports quantity | 4 |
DisplayPorts quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
DisplayPort version | 1.4 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
Number of M.2 (M) slots | 1 |
PCI Express x16 slots | 1 |
PCI Express x1 slots | 1 |
