Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Pentium® Gold |
Processor manufacturer | Intel |
Processor Socket | LGA 1700 |
On-board graphics card | No |
Parallel processing technology support | Not supported |
MOTHERBOARD CHIPSET | Intel Z790 |
Motherboard form factor | ATX |
audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Product colour | Black |
Motherboard chipset family | Intel |
Windows operating systems supported | Windows 10 x64 |
Supported memory clock speed (max) | 7000 MHz |
Supported memory clock speeds | 4800 |
Maximum internal memory | 128 GB |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Depth | 243.8 mm |
Width | 304.8 mm |
Bluetooth | Yes |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi standards | 802.11b |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth Version | 5.3 |
USB 2.0 connectors | 4 |
Front panel audio connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
Number of SATA III connectors | 6 |
Front panel connector | Yes |
TPM connector | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
RGB LED pin header | Yes |
BIOS Type | UEFI AMI |
Bundled software | Drivers
MSI Center
Intel Extreme Tuning Utility
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition |
CABLES INCLUDED | SATA |
RAID levels | 10 |
Raid Support | Yes |
Supported storage drive interfaces | M.2, PCI Express |
Supported storage drive types | HDD & SSD |
Internal storage capacity | 10 GB |

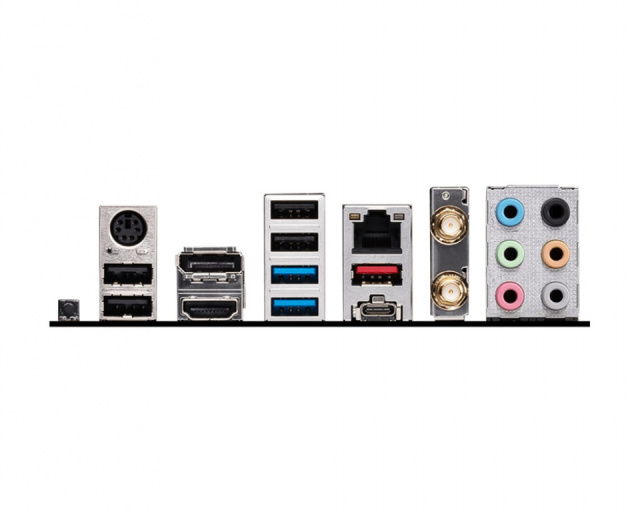

USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
S/PDIF out port | Yes |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
DisplayPort version | 1.4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
DisplayPorts quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
Number of M.2 (M) slots | 4 |
