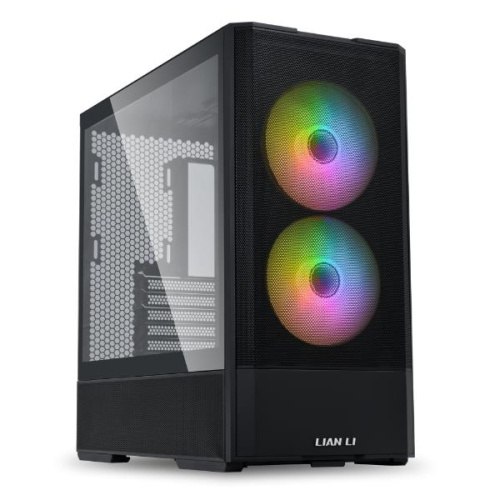

LANCOOL 207 | PC | Midi Tower | Black | Material Tempered glass/Steel | Supported mainboards ATX/micro ATX/Mini-ITX | 7xNumber of expansion slots | Side window Yes | Anti-dust filter Yes | Supported HDD sizes 2.5/3.5 "
| Description | The LANCOOL 207 reimagines the traditional ATX layout, packing powerful compatibility and superior cooling into a sleek, compact M-ATX chassis.
AVAILABLE IN 2 COLORS The LANCOOL 207 is available in classic Black and refreshing White, ensuring a perfect match for your style.
COMPACT POWERHOUSE Though compact in size, the LANCOOL 207 offers remarkable compatibility, supporting ATX Motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm, all within the sleek 45.5L chassis.
SPACE-SAVING INNOVATIVE LAYOUT The LANCOOL 207’s unique offset Motherboard tray provides a space-efficient solution while improving compatibility and airflow.
The LANCOOL 207 supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards.
EASY ACCESS FRONT-MOUNTED PSU The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.
The LANCOOL 207 offers PSU mounting with the fan oriented either upward or downward.
SUPERIOR COOLING PERFORMANCE Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 comes pre-installed with four high-performance fans for superior out-of-box cooling.
The PPLP Lab testing shows the Lancool 207 is in the top-tier of their ranking, which deliver outstanding thermal performance.This earned it the Level-S Chassis Performance award for exceptional thermal management.
360mm Radiator Compatibility The top of the case supports a 360mm push-pull radiator configuration thanks to the offset Motherboard tray design.
SEAMLESS CONNECTIVITY The LANCOOL 207’s top-mounted I/O panel offers easy access to essential ports.
EFFICIENT CABLE MANAGEMENT With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.
1. Routing for EPS cable 2. 3 × Triple Velcro Straps for cable management 3. Grommet for 24-PIN Motherboard cable 4. Space for 2 × Hard Drives
OPTIONAL ACCESSORIES Vertical GPU Kit – VG4-4-V2X / VG4-4-V2W
The LIAN LI universal vertical GPU bracket can be installed with no need to remove the bottom fans, ensuring enhanced airflow. The included rubber pad can be used to prevent the GPU from sagging.
Front Dust Filter – LAN207-1X / LAN207-1W
For next level dust prevention, a front panel dust filter is available as an optional accessory. It fits seamlessly behind the front fan, providing an extra layer of protection.M-ATX sized case with ATX compatibilityIncludes 2 x 140mm ARGB fans at the front and 2 x 120mm PWM fans above the PSU shroud for maximum out-of-box coolingFully ventilated mesh panels on the front, top, and bottom, ensuring excellent airflowFront-mounted PSU with side-facing connector ports for easy cable managementMotherboard tray position redesigned to improve top radiator clearance and locate bottom fans directly under the GPU for better coolingGPU anti-sag bracket with vertical and horizontal adjustment to support different GPUs |
| Summary | Lian Li Lancool 207. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 2x 140 mm, Front fans diameters supported: 140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 219 mm, Depth: 455.6 mm, Height: 456 mm |
| Vendor Homepage | https://lian-li.com/product/lancool-207/ |
| Category Code | CAS |
| CnCode | 84733080 |
| Unit Box Height | 0.515 |
| Unit Box Length | 0.525 |
| Unit Box Width | 0.29 |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Form factor | Midi Tower |
| Material | Steel/Tempered glass |
| Maximum CPU cooler height | 180 mm |
| Maximum graphics card length | 375 mm |
| Maximum PSU length | 160 mm |
| Number of 3.5" bays | 2 |
| Number of Expansion Slots | 7 |
| On/off button | Yes |
| Product colour | Black |
| Side window | Yes |
| Suitable for | Gaming |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
| Power supply included | No |
| Power supply location | Bottom |
| Combo headphone/mic port | Yes |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Fan speed | 450 - 1900 RPM |
| Front fans diameters supported | 140 mm |
| Front fans installed | 2x 140 mm |
| Maximum air pressure | 3.3 mmH2O |
| Maximum airflow | 109.3 cfm |
| Number of front fans supported (max) | 2 |
| Number of rear fans supported (max) | 1 |
| Number of side fans supported (max) | 2 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 2x 120 mm |
| Side fans diameters supported | 120 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 240/280/360 mm |
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5/3.5 " |
| Warranty period | 1 year(s) |
| Depth | 455.6 mm |
| Height | 456 mm |
| Width | 219 mm |
| Model name | LANCOOL 207 |
| Model | G99.LAN207RX.00 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.07841 cubm |
| Unit Calculated Weight | 11 kg |
