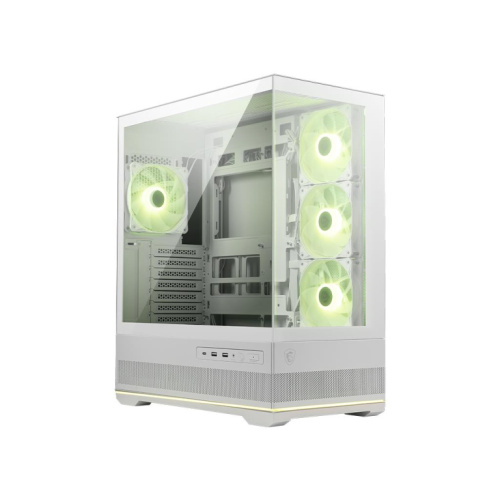

MAG PANO 110R PZ / WHITE | PC | Midi Tower | White | Material Tempered glass | Supported mainboards ATX/micro ATX/Mini-ATX | 7xNumber of expansion slots | Side window Yes | Supported HDD sizes 2.5/3.5 "
Description | MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.
Decorated with a metal nameplate to highlight the MAG family identity.
Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.
Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design. 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed componentsMeasurements: Supports multiple Motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setupPre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan framesARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch buttonUpgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance |
Summary | MSI MAG PANO 110R PZ White. Form factor: Midi Tower, Type: PC, Product colour: White. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 420 mm, Height: 485 mm |
Vendor Homepage | https://www.msi.com/PC-Case/MAG-PANO-110R-PZ/Overview |
Category Code | CAS |
Unit Box Height | 0.535 |
Unit Box Length | 0.57 |
Unit Box Width | 0.33 |
Form factor | Midi Tower |
Illumination location | case fans |
LED indicators | Yes |
Material | Tempered glass |
Maximum CPU cooler height | 160 mm |
Maximum graphics card length | 200 mm |
Maximum PSU length | 400 mm |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Number of Expansion Slots | 7 |
On/off button | Yes |
Product colour | White |
Side window | Yes |
Suitable for | Gaming |
Supported motherboard form factors | ATX/micro ATX/Mini-ATX |
Type | PC |
Power supply included | No |
Power supply location | Bottom |
Supported power supply form factors | ATX |
Combo headphone/mic port | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Bottom fans diameters supported | 120/140/160 mm |
Bottom radiator sizes supported | 120/240/360 mm |
Number of bottom fans supported (max) | 3 |
Number of rear fans supported (max) | 1 |
Number of side fans supported (max) | 3 |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Rear fans installed | 1x 120 mm |
Rear radiator sizes supported | 120 mm |
Side fans diameters supported | 120/140 mm |
Side fans installed | 3x 120 mm |
Side radiator sizes supported | 120/240/360 mm |
Top fans diameters supported | 120/140 mm |
Top radiator sizes supported | 120/240/360 mm |
Supported HDD sizes | 2.5/3.5 " |
Depth | 420 mm |
Height | 485 mm |
Width | 225 mm |
Model name | MAG PANO 110R PZ / White |
Units per Shipping Box | 1 |
Unit Calculated Volume | 0.09086/0.1006 cubm |
Unit Calculated Weight | 11.3 kg |
