energy | |
overall performance | 1000 W |
peak current | 1070 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
input current | 13/6.5 A |
power factor | 0,99 |
Combined Current (+3.3V) | 150 W |
Combined power (+12V) | 999,6 W |
Combined current (+5V) | 150 W |
Max. output current (+3.3V) | 25 A |
Max. output current (+12V) | 83,3 A |
Max output current (+5V) | 25 A |
Max. output current (-12V) | 0,5 A |
Max. output current (+5Vsb) | 3 A |
holding time | 25,3 ms |
efficiency | 91,8% |
energy conservation properties | Überstrom, Überlastung, Überspannung, Überhitzung, Unterspannung |
connections and interfaces | |

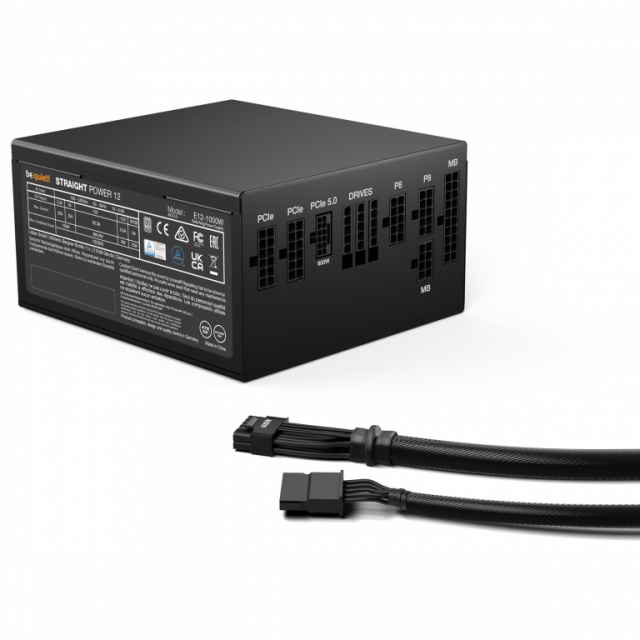

Motherboard connector plug | 20+4 pin ATX |
Power cable length motherboard | 60 cm |
Number of SATA power plugs | 9 |
Number of PATA power connections | 2 |
SATA power cable length | 550,700,850,1000 mm |
Peripheral (Molex) power cord length | 1000,850 mm |
Eigenschaft | Nachhaltigkeitskonformität |
Number of PCI Express power connectors 6+2pin | 4 |
PCI Express power connectors (16-pin) | 1 |
PCI Express power cord length | 60 cm |
CPU performance cable length | 70 cm |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Platinum |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.0 |
EPS-Version | 2.92 |
noise level | 28,9 dB |
storage type | FDB |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Schwarz |
cooling | Aktiv |
fan diameter | 13,5 cm |
number of fans | 1 Lüfter |
fan speed | 0 - 2100 RPM |
operating conditions | |
operating temperatur | 0 - 40 °C |
scope of delivery | |
Supplied cables | CPU, SATA |
weight and dimensions | |
broad | 150 mm |
depth | 160 mm |
height | 86 mm |
Weight | 1,85 kg |
package weight | 3,56 kg |
packaging type | Box |
Technical details | |
sustainability certificates | Triman, ENERGY STAR, ErP |
warranty period | 10 Jahr(e) |
Konformitätsbescheinigungen | RoHS, Eidgenössische Kommunikationskommission (FCC), UKCA, WEEE, CE |
logistic data | |
shipping carton length | 65,1 cm |
shipping carton width | 28,2 cm |
shipping carton height | 34,6 cm |
Net weight of shipping carton | 22,9 kg |
Quantity per shipping carton | 6 Stück(e) |
