energy | |
overall performance | 1000 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
input current | 15-8 A |
Combined Current (+3.3V) | 100 W |
Combined power (+12V) | 999,6 W |
Combined current (+5V) | 100 W |
Combined current (-12V) | 4,8 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V) | 83,3 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,4 A |
Max. output current (+5Vsb) | 3 A |
energy conservation properties | Überstrom, Überlastung, Überspannung, Kurzschluß, Unterspannung |
connections and interfaces | |

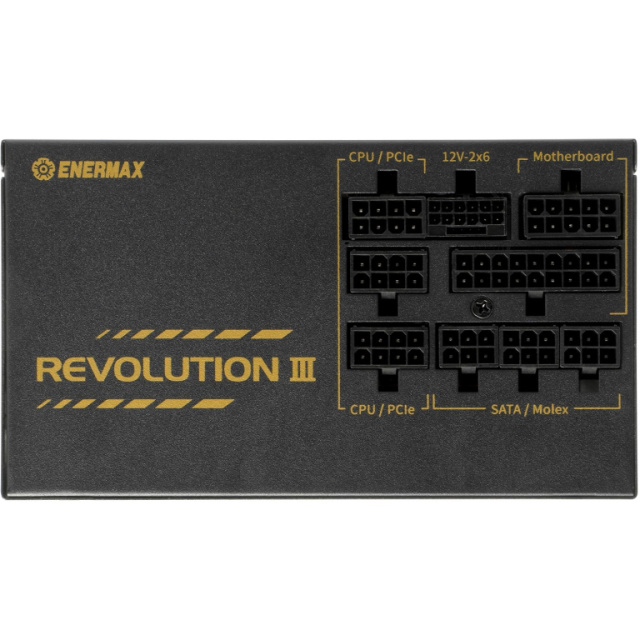

Motherboard connector plug | 20+4 pin ATX |
Eigenschaft | EPS-Stromanschluss (4+4-polig) |
Number of PCI Express power connectors 6+2pin | 1 |
PCI Express-Stromanschlüsse (12+4 Pol) | 1 |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Schwarz |
fan diameter | 12 cm |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
package weight | 1,5 kg |
