energy | |
overall performance | 750 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
input current | 10 - 5 A |
Combined Current (+3.3V) | 100 W |
Combined power (+12V) | 744 W |
Combined current (+5V) | 100 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V) | 62 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
energy conservation properties | Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Unterspannung |

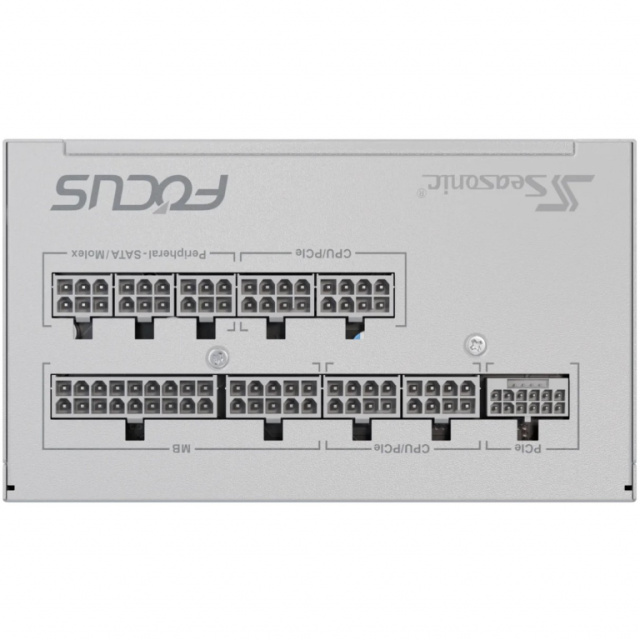

connections and interfaces | |
Motherboard connector plug | 24-pin ATX |
Power cable length motherboard | 61 cm |
SATA power cable length | 950 mm |
Peripheral (Molex) power cord length | 690 mm |
Number of PCI Express power connectors 6+2pin | 2 |
PCI Express-Stromanschlüsse (12+4-polig) Kabellänge | 700 mm |
PCI Express power cord length | 75 cm |
Eigenschaft | Nachhaltigkeitskonformität |
CPU performance cable length | 70 cm |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.1 |
storage type | FDB |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Weiß |
cooling | Aktiv |
fan diameter | 13,5 cm |
number of fans | 1 Lüfter |
operating conditions | |
operating temperatur | 0 - 50 °C |

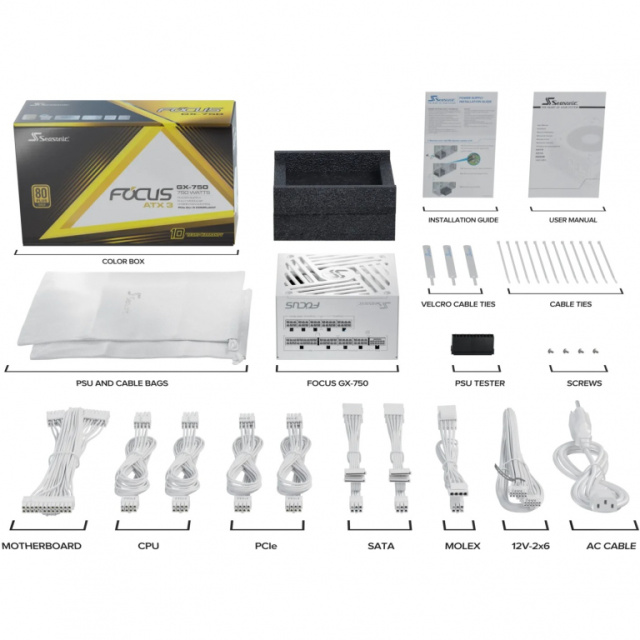

scope of delivery | |
certificates | |
Konformitätsbescheinigungen | BSMI, CB, CCC, CE, EAC, Eidgenössische Kommunikationskommission (FCC), REACH, RoHS, TÜV mark, cTUVus |
certification | BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
Technical details | |
sustainability certificates | ENERGY STAR, ErP |
