energy | |
overall performance | 1000 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
input current | 13 - 6.5 A |
Combined Current (+3.3V) | 125 W |
Combined power (+12V) | 996 W |
Combined current (+5V) | 125 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 25 A |
Max. output current (+12V) | 83 A |
Max output current (+5V) | 25 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
energy conservation properties | Überstrom, Überlastung, Überspannung, Kurzschluß, Unterspannung |

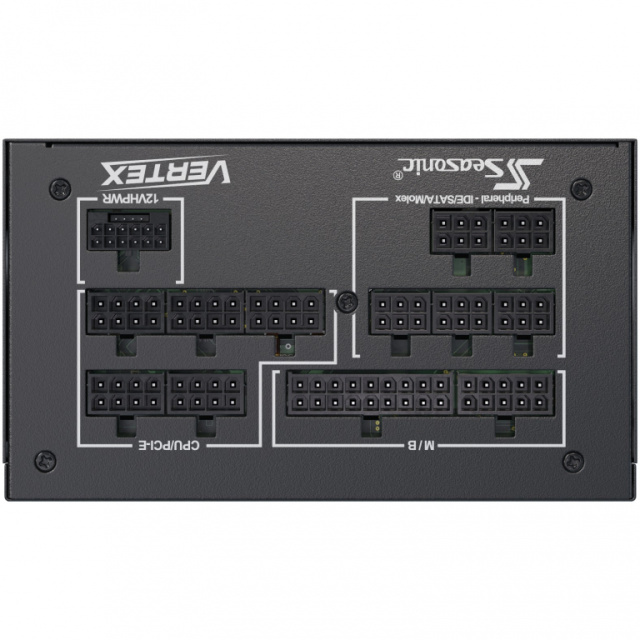

connections and interfaces | |
Motherboard connector plug | 20+4 pin ATX |
Power cable length motherboard | 61 cm |
Number of SATA power plugs | 4 |
SATA power cable length | 950 mm |
Number of Molex connectors 4pin | 1 |
Peripheral (Molex) power cord length | 690 mm |
CPU P4 connector (4-pin) | 2 |
CPU performance cable length | 65 cm |
Eigenschaft | Kabelbinder enthalten |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.0 |
storage type | FDB |
Mean Time Between Failures (MTBF) | 150000 h |
certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Design | |
Product color | Schwarz |
cooling | Aktiv |
fan diameter | 13,5 cm |
number of fans | 1 Lüfter |
operating conditions | |
operating temperatur | 0 - 50 °C |
scope of delivery | |
Supplied cables | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
weight and dimensions | |
broad | 150 mm |
depth | 160 mm |
height | 86 mm |
packaging type | Box |
Technical details | |
warranty period | 10 Jahr(e) |
Konformitätsbescheinigungen | CE, REACH, RoHS |
