energy | |
overall performance | 1200 W |
Combined Current (+3.3V) | 130 W |
Combined power (+12V) | 1200 W |
Combined current (+5V) | 130 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V) | 100 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
holding time | 17 ms |
energy conservation properties | Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Unterspannung |
connections and interfaces | |

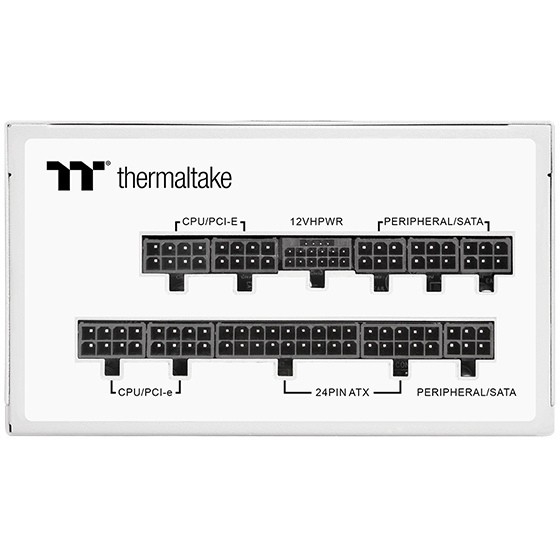

Motherboard connector plug | 24-pin ATX |
Power cable length motherboard | 60 cm |
Number of SATA power plugs | 8 |
SATA power cable length | 500,650,800,950 mm |
Number of Molex connectors 4pin | 8 |
Peripheral (Molex) power cord length | 500,650,800,950 mm |
Eigenschaft | Ein-/Ausschalter |
Number of PCI Express power connectors 6+2pin | 4 |
PCI Express-Stromanschlüsse (12+4 Pol) | 1 |
Floppy drive power connection | 1 |
Floppy drive cable length | 15 cm |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.0 |
Design | |
Product color | Weiß |
cooling | Aktiv |

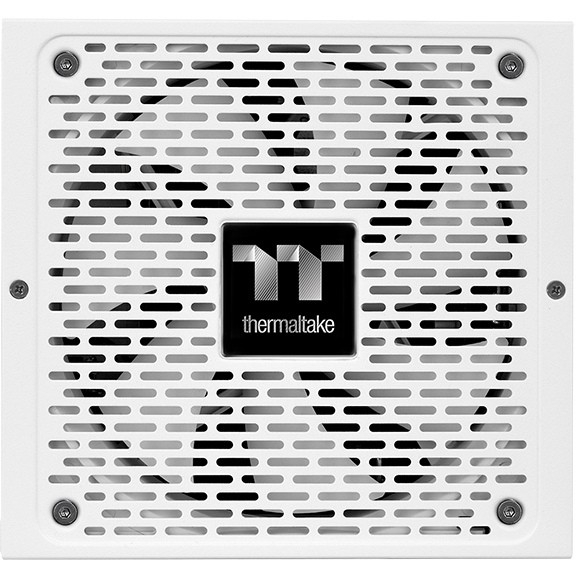

fan diameter | 14 cm |
number of fans | 1 Lüfter |
fan placement | Oben |
operating conditions | |
operating temperatur | 0 - 45 °C |
Storage temperature range | -40 - 55 °C |
Operating relative humidity | 20 - 85% |
humidity during storage | 10 - 95% |
weight and dimensions | |
broad | 150 mm |
depth | 160 mm |
height | 86 mm |
Technical details | |
Garantiezeit | 10 Jahr(e) |
Konformitätsbescheinigungen | BSMI, CB, CCC, CE, Eidgenössische Kommunikationskommission (FCC), Niederspannungsrichtlinie (LVD), cTUVus, UKCA |
