energy | |
overall performance | 400 W |
AC input voltage | 200 - 240 V |
AC input frequency | 50 Hz |
input current | 4 A |
power factor | 0,95 |
Power Factor Correction Filter (PFC) | Aktiv |
Combined Current (+3.3V) | 103 W |
Combined power (+12V) | 384 W |
Combined current (+5V) | 103 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 24 A |
Max. output current (+12V1) | 22 A |
Max output current (+12V2) | 18 A |
Max output current (+5V) | 15 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
holding time | 17 ms |
efficiency | 89% |
energy conservation properties | Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Unterspannung |

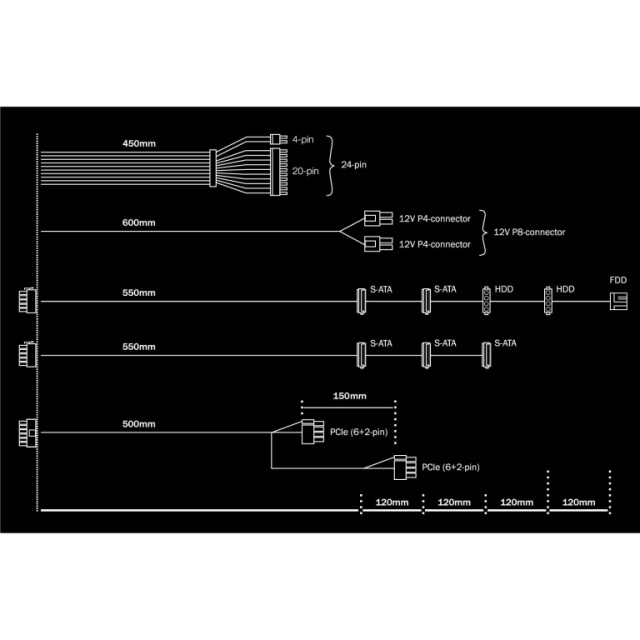

connections and interfaces | |
Motherboard connector plug | 20+4 pin ATX |
Power cable length motherboard | 45 cm |
Number of SATA power plugs | 5 |
Number of PATA power connections | 2 |
SATA power cable length | 550,670 mm |
Number of PCI Express power connectors 6+2pin | 2 |
PCI Express power cord length | 50 cm |
Eigenschaft | Schrauben enthalten |
CPU performance cable length | 60 cm |
Floppy drive power connection | 1 |
cable type | Semi-Modular |
Services | |
80 plus certification | 80 PLUS Bronze |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 2.51 |
storage type | Schutzhülle |
certification | CE, CB, TÜV, RCM, CU |
Compatible Products | Intel C6/C7 |
Design | |
Product color | Schwarz |
cooling | Aktiv |
fan diameter | 12 cm |
number of fans | 1 Lüfter |
scope of delivery | |
Supplied cables | PCIe, SATA |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
Weight | 1,49 kg |
package weight | 2,11 kg |
packaging type | Box |
Technical details | |
sustainability certificates | ENERGY STAR |
Konformitätsbescheinigungen | RoHS |
logistic data | |
Shipping box width | 311 mm |
Shipping carton length | 215 mm |
Shipping carton height | 556 mm |
Shipping carton weight | 13,4 kg |
Goods tariff number (HS) | 84733020 |
Number of products per shipping carton | 6 Stück(e) |
Other functions | |

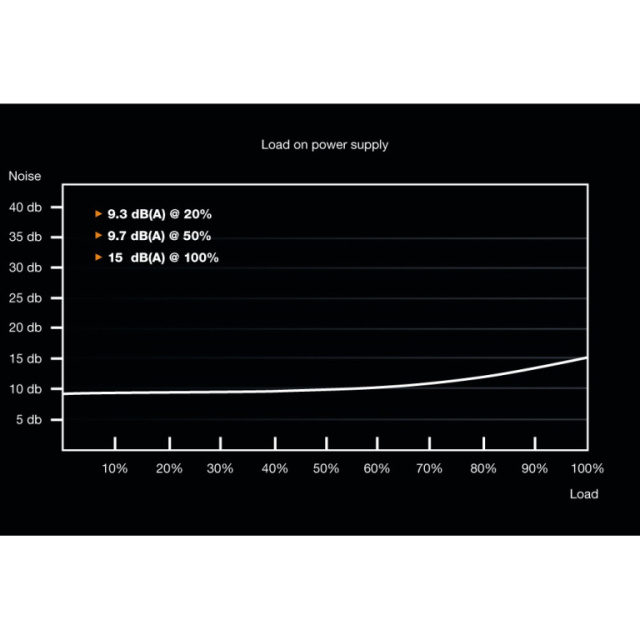

Noise Level (Quiet Mode, <30%) | 9,3 dB |
Noise level (sleep mode, 50%) | 9,7 dB |
Noise level (full load mode, 100%) | 15 dB |
