energy | |
overall performance | 420 W |
AC input voltage | 115 - 230 V |
AC input frequency | 47 - 63 Hz |
Maximum input current (at 110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
Power Factor Correction Filter (PFC) | Aktiv |
Combined Current (+3.3V) | 103 W |
Combined current (+5V) | 103 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 15 A |
Max. output current (+12V1) | 17 A |
Max output current (+12V2) | 18 A |
Max output current (+5V) | 15 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
connections and interfaces | |
Motherboard connector plug | 20+4 pin ATX |
Number of SATA power plugs | 3 |
Number of Molex connectors 4pin | 2 |
Eigenschaft | Betriebsanleitung |
Floppy drive power connection | 1 |
cable type | Nicht-modular |
Services | |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 2.31 |
noise level | 21 dB |
Design | |
Product color | Schwarz |
cooling | Aktiv |

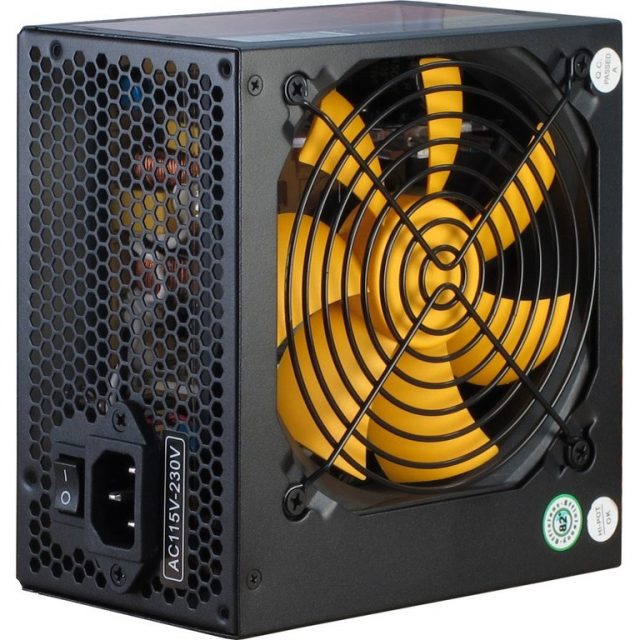

fan diameter | 12 cm |
number of fans | 1 Lüfter |
fan placement | Oben |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
Weight | 1,1 kg |
package weight | 1,42 kg |
packaging type | Box |
logistic data | |
Goods tariff number (HS) | 84733020 |
