energy | |
overall performance | 750 W |
AC input voltage | 100 - 240 V |
AC input frequency | 47 - 63 Hz |
input current | 10 A |
power factor | 0,99 |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V) | 62,5 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
energy conservation properties | Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Surge & inrush protection (SIP), Unterspannung |

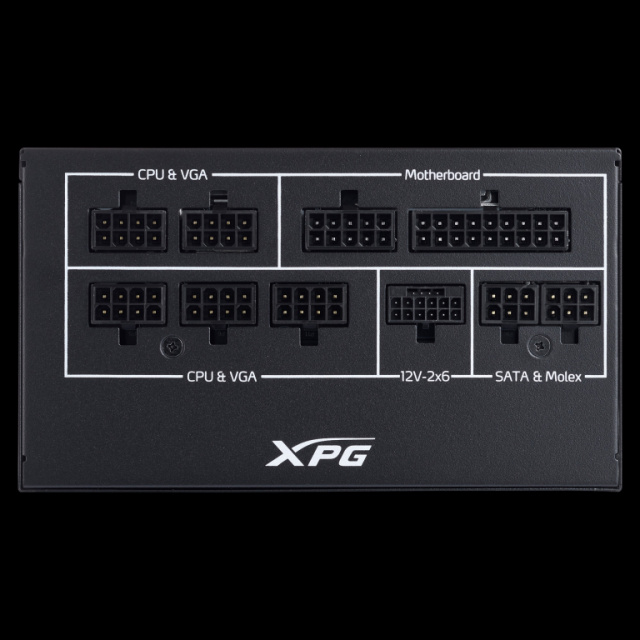

connections and interfaces | |
Motherboard connector plug | 24-pin ATX |
Power cable length motherboard | 65 cm |
Number of SATA power plugs | 6 |
SATA power cable length | 150,450 mm |
Number of Molex connectors 4pin | 2 |
Eigenschaft | ATX-Stromanschluss (12+4-polig) |
Number of PCI Express power connectors 6+2pin | 3 |
PCI Express-Stromanschlüsse (12+4-polig) Kabellänge | 600 mm |
CPU performance cable length | 75 cm |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.1 |
storage type | FDB |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Schwarz |
cooling | Aktiv |

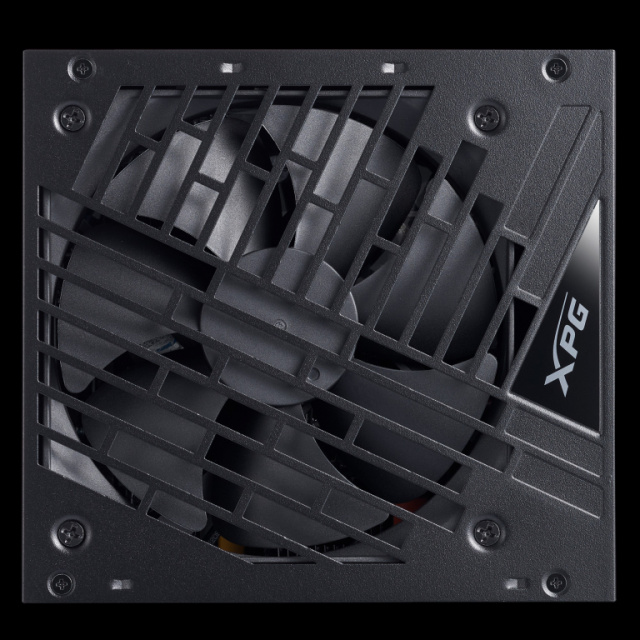

fan diameter | 12 cm |
number of fans | 1 Lüfter |
certificates | |
certification | CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
Weight | 1,45 kg |
package weight | 3,03 kg |
