energy | |
overall performance | 750 W |
peak current | 820 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
input current | 10/5 A |
power factor | 0,98 |
Power Factor Correction Filter (PFC) | Aktiv |
Combined Current (+3.3V) | 120 W |
Combined power (+12V) | 750 W |
Combined current (+5V) | 120 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V1) | 36 A |
Max output current (+12V2) | 32 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
efficiency | 92,6% |
Power Good Signal Delay Range | 100 - 150 ms |
energy conservation properties | Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß |
connections and interfaces | |
Motherboard connector plug | 20+4 pin ATX |
Power cable length motherboard | 55 cm |
Number of SATA power plugs | 5 |
Number of PATA power connections | 2 |
SATA power cable length | 500,650,800,950 mm |
Number of Molex connectors 4pin | 1 |
Peripheral (Molex) power cord length | 550 mm |
Eigenschaft | Kabelbinder inklusive |
Number of PCI Express power connectors 6+2pin | 2 |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.0 |
EPS-Version | 2.92 |
noise level | 24 dB |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Schwarz |
cooling | Aktiv |
fan diameter | 12 cm |
number of fans | 1 Lüfter |
fan placement | Oben |
operating conditions | |
operating temperatur | 0 - 40 °C |
scope of delivery | |

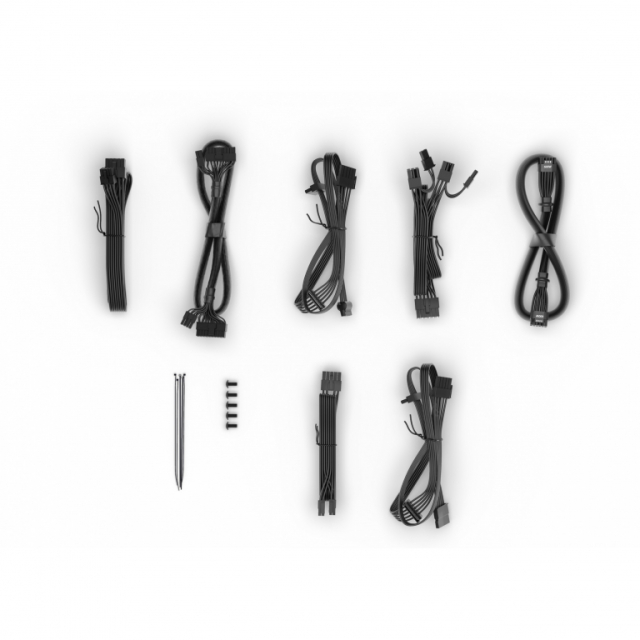

Supplied cables | PATA, PCIe, Peripheral (Molex), SATA |
weight and dimensions | |
broad | 160 mm |
depth | 150 mm |
height | 86 mm |
Technical details | |
sustainability certificates | ENERGY STAR, ErP |
warranty period | 10 Jahr(e) |
Konformitätsbescheinigungen | RoHS |
Other functions | |
number of screws | 5 |
Noise Level (Quiet Mode, <30%) | 8,4 dB |
Noise level (sleep mode, 50%) | 8,9 dB |
Noise level (full load mode, 100%) | 24 dB |
