energy | |
overall performance | 750 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
input current | 9 - 4.5 A |
Maximum input current (at 110V) | 9 A |
Maximum input current (at 220V) | 4,5 A |
power factor | 0,9 |
Power Factor Correction Filter (PFC) | Aktiv |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V1) | 62,5 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
energy conservation properties | Überstrom, Überspannung, Kurzschluß, Überspannung und Zustrom |

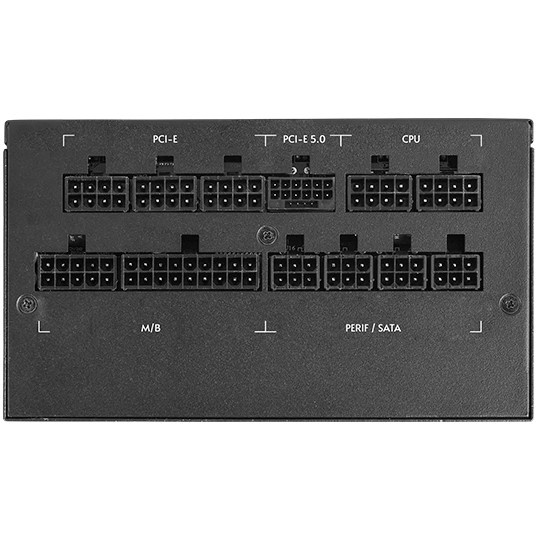

connections and interfaces | |
Motherboard connector plug | 20+4 pin ATX |
Power cable length motherboard | 60 cm |
Number of SATA power plugs | 9 |
SATA power cable length | 550,650,750 mm |
Peripheral (Molex) power cord length | 550,650,750,850 mm |
Eigenschaft | Ein-/Ausschalter |

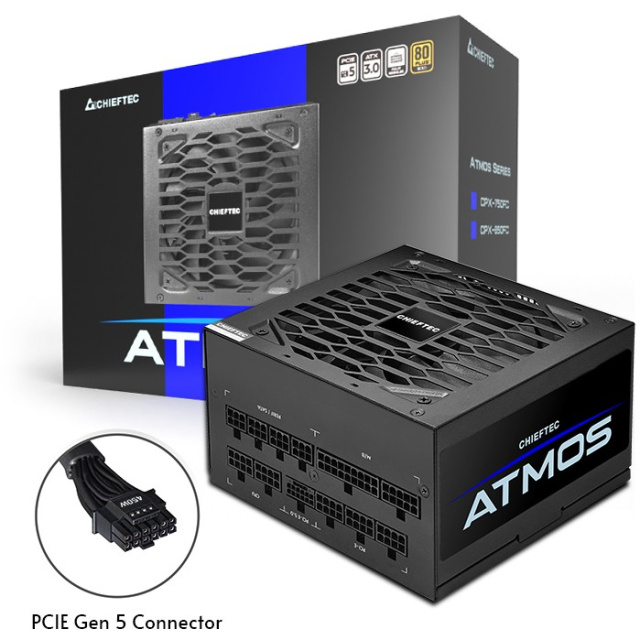

PCI Express power connectors (16-pin) | 1 |
CPU performance cable length | 60 cm |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
Supported motherboard form factors | ATX |
purpose | PC / Server |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.0 |
Design | |
Product color | Schwarz |

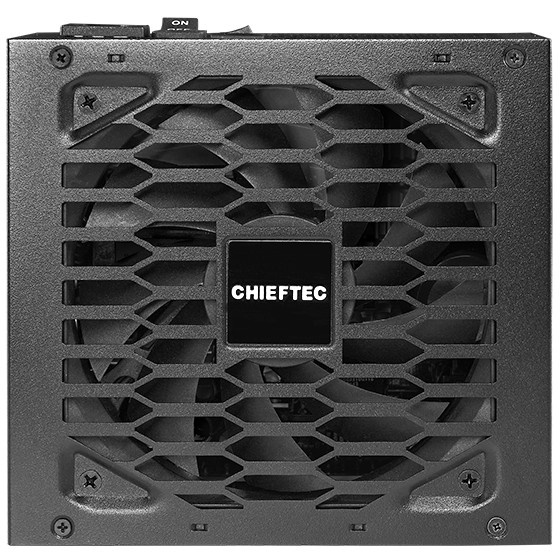

fan diameter | 12 cm |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
Weight | 1,49 kg |
