energy | |
overall performance | 750 W |
AC input voltage | 100 - 240 V |
AC input frequency | 47 - 63 Hz |
input current | 10 - 5 A |
Maximum input current (at 110V) | 10 A |
Maximum input current (at 220V) | 5 A |
Combined Current (+3.3V) | 150 W |
Combined power (+12V) | 750 W |
Combined current (+5V) | 150 W |
Combined current (-12V) | 9,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 25 A |
Max. output current (+12V) | 62,5 A |
Max output current (+5V) | 25 A |
Max. output current (-12V) | 0,8 A |
Max. output current (+5Vsb) | 3 A |
connections and interfaces | |
Motherboard connector plug | 24-pin ATX |
Number of SATA power plugs | 8 |
Number of Molex connectors 4pin | 7 |
Eigenschaft | Ein-/Ausschalter |
Floppy drive power connection | 1 |

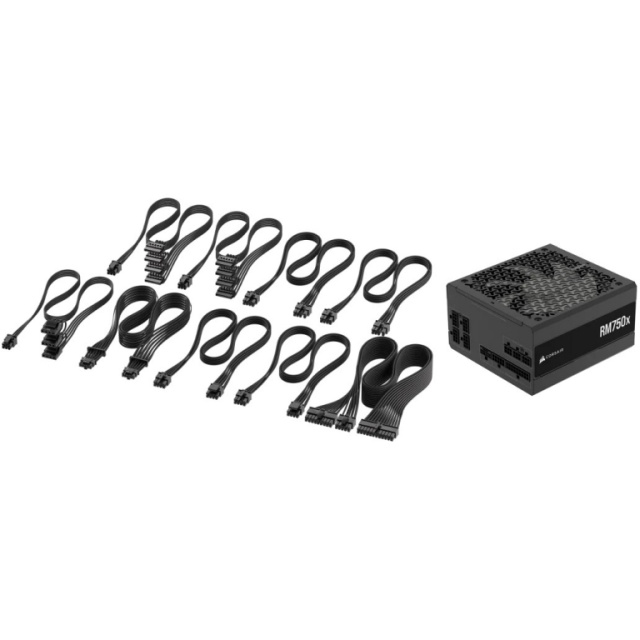

cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 2.4 |
EPS-Version | 2.92 |
storage type | Gewehr |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Schwarz |
cooling | Aktiv |
fan diameter | 14 cm |
number of fans | 1 Lüfter |
weight and dimensions | |
broad | 150 mm |
depth | 160 mm |
height | 86 mm |
Weight | 3,19 kg |
packaging type | Box |
Technical details | |
warranty period | 10 Jahr(e) |
Konformitätsbescheinigungen | RoHS |
