energy | |
overall performance | 750 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
input current | 10 - 5 A |
Combined Current (+3.3V) | 130 W |
Combined power (+12V) | 744 W |
Combined current (+5V) | 130 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V) | 62 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
energy conservation properties | Überstrom, Überspannung, Kurzschluß |

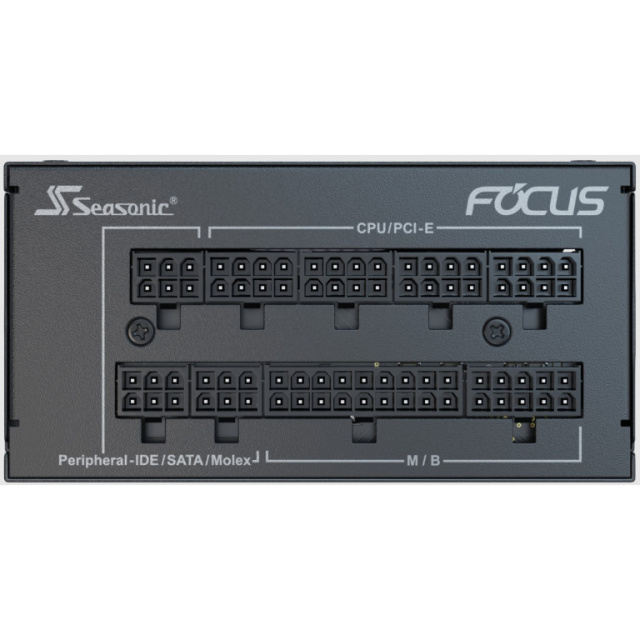

connections and interfaces | |
Motherboard connector plug | 20+4 pin ATX |
Power cable length motherboard | 35 cm |
Number of SATA power plugs | 6 |
Number of Molex connectors 4pin | 3 |
Number of PCI Express power connector 8pin | 4 |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Platinum |
purpose | PC |
Power supply unit (PSU) form factor | CFX |
storage type | FDB |
Mean Time Between Failures (MTBF) | 100000 h |
certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Design | |
Product color | Schwarz |

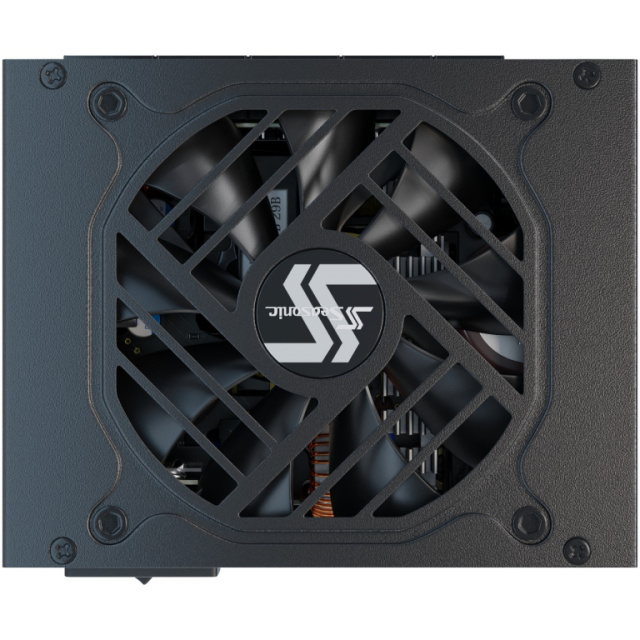

cooling | Aktiv |
fan diameter | 9,2 cm |
number of fans | 1 Lüfter |
Eigenschaft | Kabelbinder enthalten |
operating conditions | |
operating temperatur | 0 - 50 °C |
scope of delivery | |
Supplied cables | AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
weight and dimensions | |
broad | 125 mm |
depth | 100 mm |
height | 63,5 mm |
packaging type | Box |
