energy | |
overall performance | 850 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
input current | 9 A |
Combined Current (+3.3V) | 100 W |
Combined power (+12V) | 840 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V) | 70 A |
Max output current (+5V) | 20 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |
energy conservation properties | Überstrom, Überlastung, Unterspannung, Over total voltage, Überspannung, Kurzschluß |
connections and interfaces | |
Number of PATA power connections | 2 |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.1 |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Schwarz |
cooling | Aktiv |
fan diameter | 12 cm |
number of fans | 1 Lüfter |
Eigenschaft | Ein-/Ausschalter |
operating conditions | |
operating temperatur | 0 - 50 °C |
scope of delivery | |

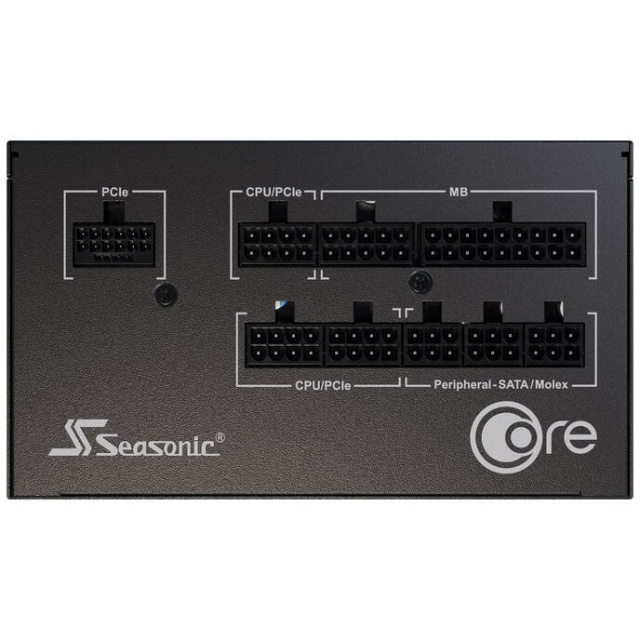

Supplied cables | AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA |
certificates | |
certification | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
packaging type | Box |
