Sustainability certificates | RoHS |
Fan Diameter | 12 cm |
Number of fans | 1 fan(s) |
On/off switch | Yes |
Product colour | Grey |

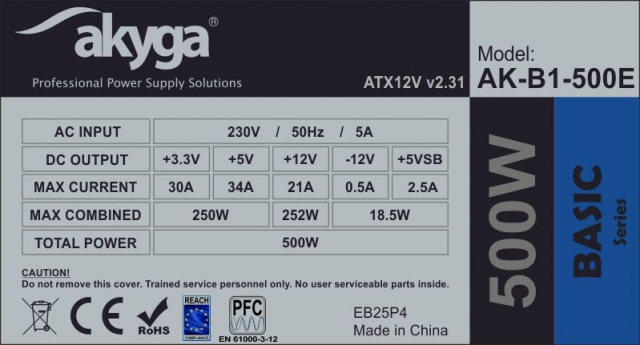

Total power | 500 W |
AC input voltage | 220 V |
Max output current (+5V) | 34 A |
Combined power (+5V) | 250 W |
Input current | 5 A |
Max output current (+3.3V) | 30 A |
Power Factor Correction (PFC) type | Passive |
Max output current (+12V) | 21 A |
Combined power (+12V) | 252 W |
Combined power (+3.3V) | 250 W |
Operating temperature (T-T) | 5 - 50 °C |
Width | 150 mm |
Weight | 1.01 kg |
Height | 85 mm |
Depth | 140 mm |
Certification | CE, RoHS, REACH |
Purpose | PC |
Mean time between failures (MTBF) | 100000 h |
ATX version | 2.31 |
Supported motherboard form factors | ATX |
Power supply unit (PSU) form factor | ATX |
Package width | 160 mm |
Manual | Yes |
PACKAGE WEIGHT | 1.09 kg |
Package depth | 220 mm |
Package height | 95 mm |
Package Type | Box |

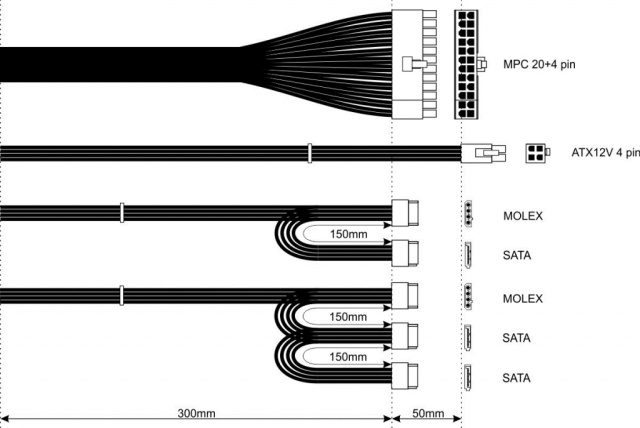

CABLES INCLUDED | Peripheral (Molex) to SATA 3.3, SATA |
PCI Express power connectors (6+2 pin) | 1 |
Number of SATA power connectors | 3 |
Peripheral (Molex) power connectors (4-pin) | 2 |
SATA power cable length | 300 |
PCI Express power connectors (6-pin) | 1 |
EPS power connector (8-pin) | No |
Motherboard power connector | 20+4 pin ATX |
Peripheral (Molex) power cable length | 300 mm |
Warranty card | Yes |
Fan controller | Yes |
Voltage tolerance | 70% |
Number of cables | 4 |
