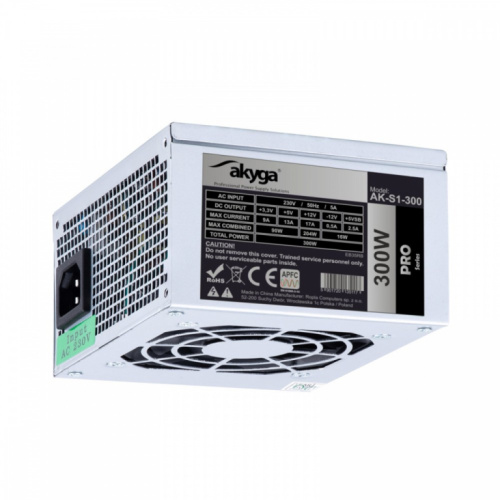

The modern SFX Akyga AK-S1-300 Pro series power supply with 300W power has been designed for mounting in compact computer enclosures in which space is limited.

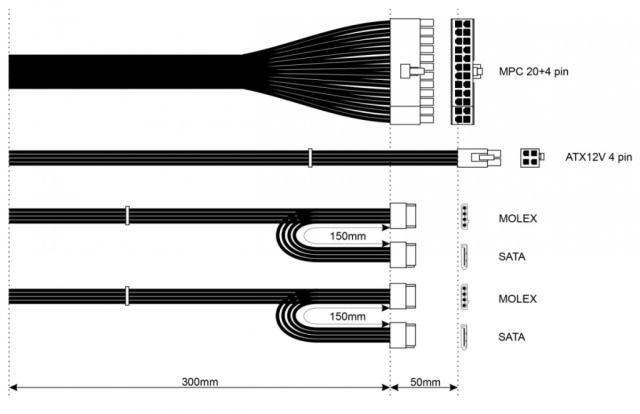

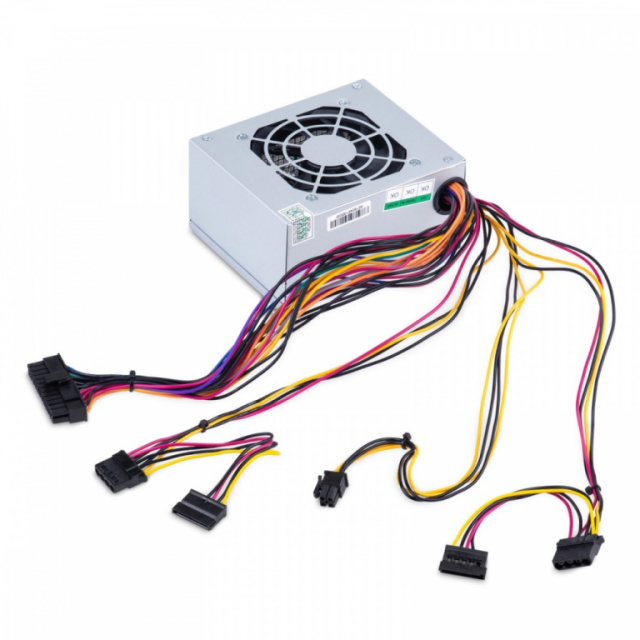

SFX has been equipped with a P4 4pin power connector, 2 MOLEX connectors, 2 SATA connectors and a universal 24pin connector for motherboards. For a better cooling effect, it has an 80 mm silent fan with automatic speed control. The power supply is characterized by high efficiency above 70%. It was made of durable, galvanized steel.
The PFC filter and a number of protections (OVP, OCP, OPP, OTP, SCP, UVP) ensure stability of both the power supply itself and the powered components, protecting against damage, including motherboard and processor.
In the set with the power supply there is a power cable.
Power supply | 300 W |
Fan | 8 cm |
PFC | Passive |
MOLEX power connectors | 2 |
Floppy power connectors | |
SATA power connectors | 2 |
Number of connectors PATA | |
Number of power supply connector 4-pin 12V | 1 |
8-pin 12V power connectors | |
Number of power supply connector 4+4-pin 12V | |
PCI-E 6-pin power connectors | |
Number of power supply connectors PCI-E 6 +2 pin | |
PCI-E 8-pin power connectors | |
Number of power connectors PCI-E 16-pin Gen 5 | |
Number of power connectors 12VHPWR | |
Number of USB 10p connectors | |
MB power connector | 20 + 4 pin |
Modular Power Supply | No |
Certificates 80+ | None |
Filters / protection | Current too high |
Accessories included | |
Dimensions | |
Weight | 0.8 |
Other features | |
Designation | CE+WEEE |
