Sustainability certificates | RoHS |
Compliance certificates | RoHS |

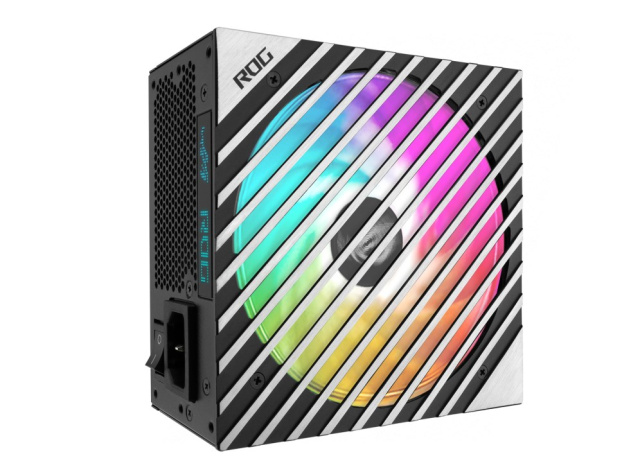

Fan Diameter | 12 cm |
Illumination | Yes |
Number of fans | 1 fan(s) |
Product colour | Silver |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Max output current (+5V) | 20 A |
AC input voltage | 100 - 240 V |
Combined power (+12V) | 750 W |
Combined power (+5V) | 110 W |
Combined power (+3.3V) | 110 W |
Max output current (+12V) | 62.5 A |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.8 A |
Total power | 750 W |
Combined power (-12V) | 9.6 W |
Depth | 125 mm |
Width | 125 mm |
Height | 63.5 mm |
Weight | 1.81 kg |
Certification | OPP/OVP/UVP/SCP/OCP/OTP |
Supported motherboard form factors | ATX |
80 PLUS Certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | SFX |
Silent mode | Yes |
Purpose | PC |
PACKAGE WEIGHT | 2.5 kg |
Package width | 285 mm |
Package depth | 190 mm |
Package Type | Box |
Package height | 100 mm |

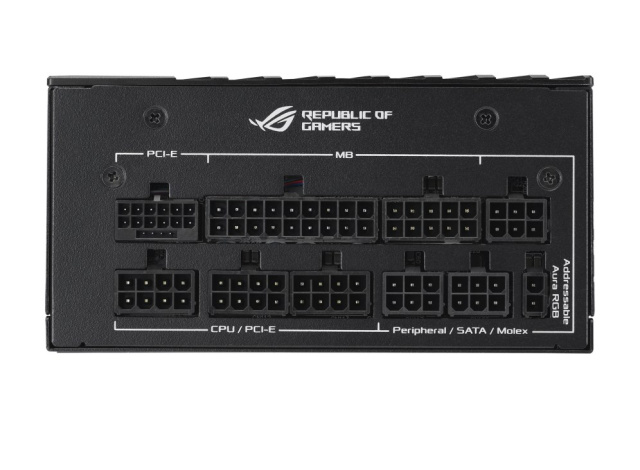

Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 6 |
Cabling Type | Fully-Modular |
PCI Express power connectors (16-pin) | 1 |
CPU power connector (4+4 pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 4 |
PCI Express power connectors (8-pin) | 3 |
