Sustainability certificates | ENERGY STAR |
Sustainability compliance | Yes |
Warranty period | 10 year(s) |
Compliance certificates | WEEE |
Fan Diameter | 13.5 cm |
Cooling type | Active |
Number of fans | 1 fan(s) |
Product colour | Black |
Max output current (-12V) | 0.5 A |
Efficiency | 94.5% |
Combined power (+12V) | 1600 W |
Max output current (+12V2) | 40 A |
Max output current (+12V4) | 45 A |
Power factor | 0.99 |
Total power | 1600 W |
Max output current (+5V) | 25 A |
Max output current (+3.3V) | 25 A |
Combined power (+3.3V) | 150 W |
Combined power (+5Vsb) | 17.5 W |
Combined power (-12V) | 6 W |
Max output current (+5Vsb) | 3.5 A |
Max output current (+12V1) | 40 A |
Max output current (+12V3) | 45 A |
Hold time | 18 ms |
Peak power | 1700 W |
Combined power (+5V) | 150 W |
Power protection features | Short circuit |
AC input voltage | 115 - 240 V |
AC input frequency | 50 - 60 Hz |
Input current | 15 - 9 A |
Depth | 200 mm |
Width | 150 mm |
Weight | 2.44 kg |
Height | 86 mm |
Mean time between failures (MTBF) | 100000 h |
EPS version | 2.92 |
Purpose | PC |
Bearing technology | FDB |
ATX version | 3.0 |
Power supply unit (PSU) form factor | ATX |
80 PLUS Certification | 80 PLUS Titanium |
Noise level | 31.1 dB |
Package width | 253 mm |
Package depth | 417 mm |
PACKAGE WEIGHT | 6.9 kg |
Package height | 152 mm |
Cable tie(s) included | Yes |

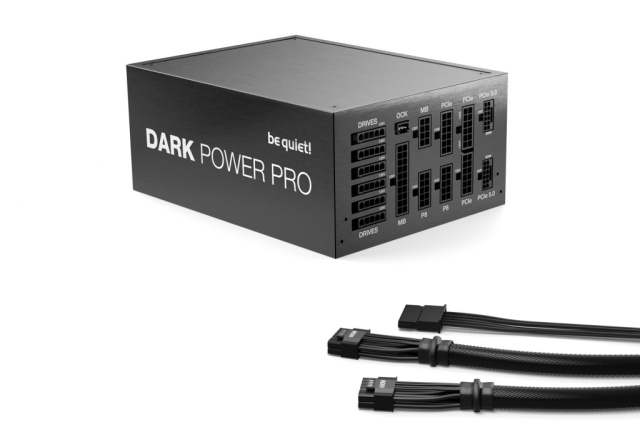

CABLES INCLUDED | CPU, PCIe, Peripheral (Molex), SATA |
SATA power cable length | 900 |
EPS power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 6 |
Peripheral (Molex) power cable length | 600 |
Number of SATA power connectors | 16 |
Motherboard power cable length | 60 cm |
ATX power connector (20+4 pin) | Yes |
Number of PATA power connectors | 5 |
PCI Express power cable length | 60 cm |
CPU power cable length | 70 cm |
PCI Express connector | Yes |
Cabling Type | Fully-Modular |
Motherboard power connector | 20+4 pin ATX |
EPS power connector (8-pin) | Yes |
