Sustainability certificates | Triman |
Compliance certificates | cTUVus |
Sustainability compliance | Yes |
On/off switch | Yes |
Fan Diameter | 12 cm |
Cooling type | Active |
Number of fans | 1 fan(s) |
Product colour | Black |
Fan speed | 0 - 2700 RPM |
AC input voltage | 100 - 240 V |
Input current | 15 - 7.5 A |
AC input frequency | 50/60 Hz |
Max output current (+5V) | 22 A |
Power protection features | Over power |
Peak power | 1250 W |
Max output current (+3.3V) | 22 A |
Efficiency | 91.5% |
Combined power (+5V) | 120 W |
Max output current (+12V2) | 50 A |
Max output current (+12V1) | 55 A |
Max output current (-12V) | 0.3 A |
Power factor | 0.98 |
Total power | 1200 W |
Combined power (+12V) | 1200 W |
Combined power (+3.3V) | 120 W |
Hold time | 19 ms |
Operating temperature (T-T) | 0 - 40 °C |
Width | 150 mm |
Depth | 160 mm |
Height | 86 mm |
Weight | 1.92 kg |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Rifle |
EPS version | 2.92 |
Supported motherboard form factors | ATX |
Purpose | PC |
Noise level | 34.3 dB |
80 PLUS Certification | 80 PLUS Gold |
Silent mode | Yes |
ATX version | 3.0 |
Power supply unit (PSU) form factor | ATX |
PACKAGE WEIGHT | 3.19 kg |
Package depth | 284 mm |
Package height | 100 mm |
Package width | 220 mm |
Package Type | Box |

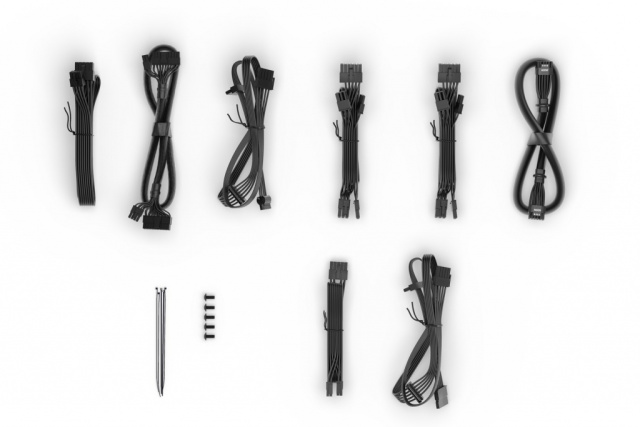

CABLES INCLUDED | AC, CPU, PATA, PCIe, SATA |
Cable tie(s) included | Yes |
CPU power cable length | 60 cm |
PCI Express power connectors (6+2 pin) | 4 |
SATA power cable length | 650 mm |
Number of PATA power connectors | 2 |
Number of SATA power connectors | 6 |
ATX power connector (20+4 pin) | Yes |
PCI Express connector | Yes |
Motherboard power connector | 20+4 pin ATX |
CPU power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Cabling Type | Fully-Modular |
PCI Express power cable length | 60 cm |
Motherboard power cable length | 55 cm |
Peripheral (Molex) power cable length | 950 mm |
Warnings | Do not open the case - risk of electric shock. |
