Sustainability certificates | RoHS |
Fan speed | 0 - 2000 RPM |
Illumination on/off | Yes |
RGB LED light | Yes |
Number of lighting colours | 7 colours |
Product colour | Black |
Cooling type | Active |
Number of fans | 1 fan(s) |
Fan Diameter | 12 cm |

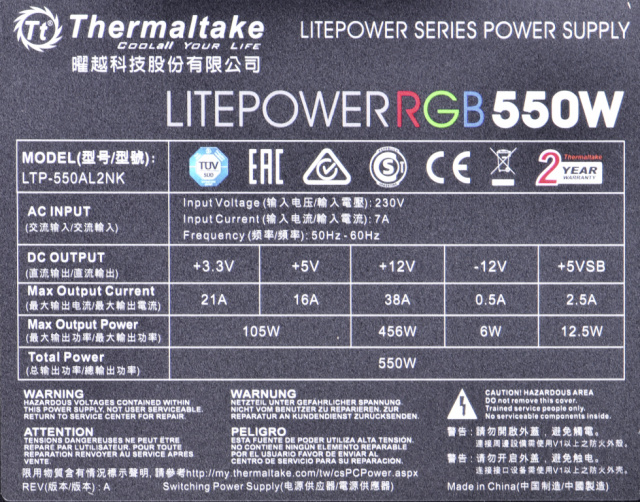

Total power | 550 W |
Input current | 7 A |
AC input frequency | 50/60 Hz |
Combined power (+3.3V) | 105 W |
Power Factor Correction (PFC) type | Active |
Max output current (+12V) | 38 A |
Combined power (+5V) | 105 W |
Max output current (+3.3V) | 21 A |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.5 A |
Max output current (+5V) | 16 A |
Recommended humidity operating range | 20 - 85 |
Storage temperature (T-T) | -40 - 55 °C |
Operating temperature (T-T) | 5 - 35 °C |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Weight | 1.68 kg |
Certification | CB, CE, EAC, RCM, SUD, TÜV |
Silent mode | Yes |
Power supply unit (PSU) form factor | ATX |
ATX version | 2.4 |
80 PLUS Certification | No |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |

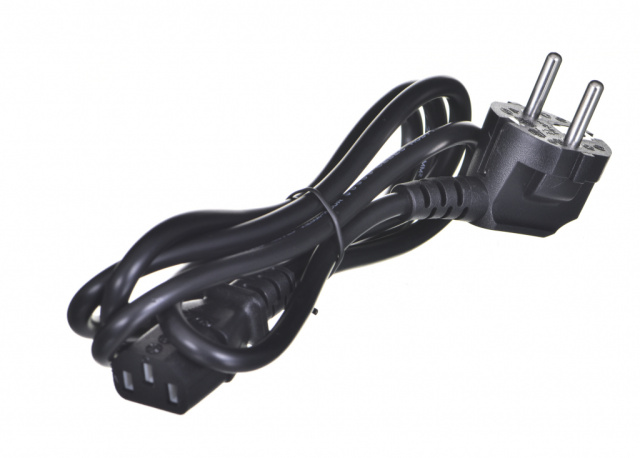

CABLES INCLUDED | AC |
Peripheral (Molex) power cable length | 450 mm |
PCI Express power cable length | 45 cm |
Number of SATA power connectors | 4 |
CPU power connector (4+4 pin) | Yes |
Cabling Type | Non-Modular |
EPS power connector (8-pin) | Yes |
PCI Express power connectors (6+2 pin) | 6 |
Peripheral (Molex) power connectors (4-pin) | 4 |
ATX Power connector (24-pin) | Yes |
Motherboard power connector | 24-pin ATX |
Motherboard power cable length | 45 cm |
SATA power cable length | 600 mm |
