Compliance certificates | Federal Communications Commission (FCC) |
Product colour | Black |
Cooling type | Active |
Number of fans | 1 fan(s) |
Fan Diameter | 12 cm |
Combined power (+5V) | 120 W |
Max output current (+3.3V) | 19 A |
Power protection features | Short circuit |
Efficiency | 88% |
AC input frequency | 50/60 Hz |
Hold time | 16 ms |
Combined power (-12V) | 3.6 W |
Power Good signal delay range | 100 - 150 ms |

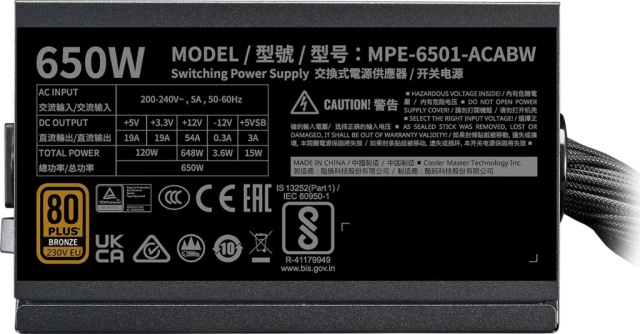

Total power | 650 W |
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 19 A |
Combined power (+12V) | 648 W |
Power Factor Correction (PFC) type | Active |
Input current | 5 A |
AC input voltage | 200 - 240 V |
Combined power (+5Vsb) | 15 W |
Max output current (-12V) | 0.3 A |
Max output current (+12V) | 54 A |
Combined power (+3.3V) | 120 W |
Operating temperature (T-T) | 0 - 40 °C |
Width | 150 mm |
Weight | 1.65 kg |
Depth | 140 mm |
Height | 86 mm |
Certification | ErP 2014 Lot 3 |
Bearing technology | HDB |
80 PLUS Certification | 80 PLUS Bronze |
Mean time between failures (MTBF) | 100000 h |
Power supply unit (PSU) form factor | ATX |
ATX version | 3.1 |
Purpose | PC/Server |
Package width | 190 mm |
Package depth | 245 mm |
PACKAGE WEIGHT | 2.05 kg |
Package height | 110 mm |
EPS power connector (4+4 pin) | Yes |
Cabling Type | Non-Modular |
Number of SATA power connectors | 6 |
Peripheral (Molex) power connectors (4-pin) | 3 |
PCI Express power cable length | 62 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (8-pin) | Yes |
SATA power cable length | 550 |
Peripheral (Molex) power cable length | 700 |
Motherboard power connector | 24-pin ATX |
Motherboard power cable length | 50 cm |
EPS cable length | 67 cm |
Products per master (outer) case | 5 pc(s) |
Master (outer) case height | 215 mm |
Master (outer) case length | 570 mm |
Master (outer) case width | 260 mm |
