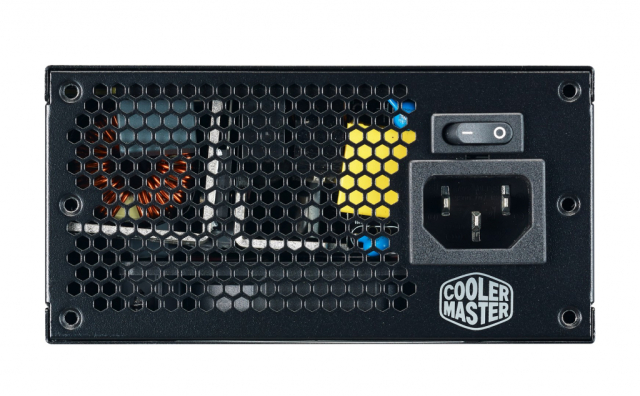

On/off switch | Yes |
Product colour | Black |
Cooling type | Active |

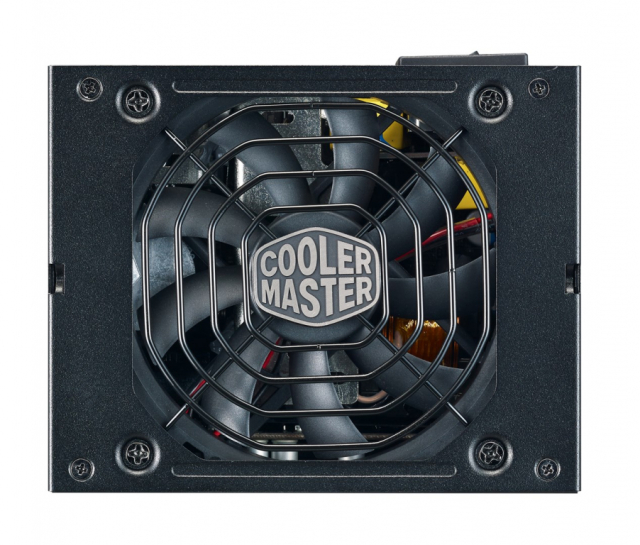

Fan Diameter | 9.2 cm |
Number of fans | 1 fan(s) |
AC input frequency | 47 - 63 Hz |
Total power | 750 W |
Combined power (+12V) | 750 W |
Hold time | 16 ms |
Efficiency | 90% |
Combined power (+5V) | 120 W |
Max output current (+3.3V) | 20 A |
Max output current (+5Vsb) | 3 A |
Input current | 10 - 5 A |
Max output current (+5V) | 20 A |
AC input voltage | 90 - 264 V |
Power protection features | Under voltage |
Max output current (+12V) | 62.5 A |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power Good signal delay range | 100 - 500 ms |
Max output current (-12V) | 0.3 A |
Operating temperature (T-T) | 0 - 50 °C |
Weight | 1.76 kg |
Depth | 100 mm |
Width | 125 mm |
Height | 63.5 mm |
Purpose | PC |
80 PLUS Certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | SFX |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Package depth | 260 mm |
Package height | 100 mm |
Package Type | Box |
Package width | 190 mm |
PACKAGE WEIGHT | 2.06 kg |

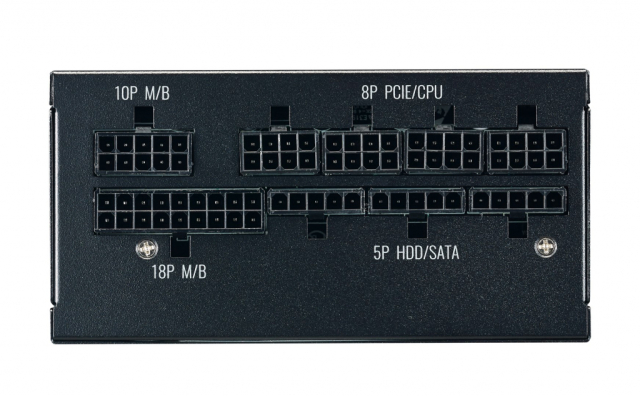

Cabling Type | Fully-Modular |
EPS power connector (4+4 pin) | Yes |
Number of SATA power connectors | 8 |
Peripheral (Molex) power connectors (4-pin) | 4 |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (8-pin) | Yes |
Motherboard power connector | 24-pin ATX |
ATX Power connector (24-pin) | Yes |
Harmonized System (HS) code | 84733020 |
