Sustainability certificates | Triman |
Sustainability compliance | Yes |
Cooling type | Active |
Product colour | Black |

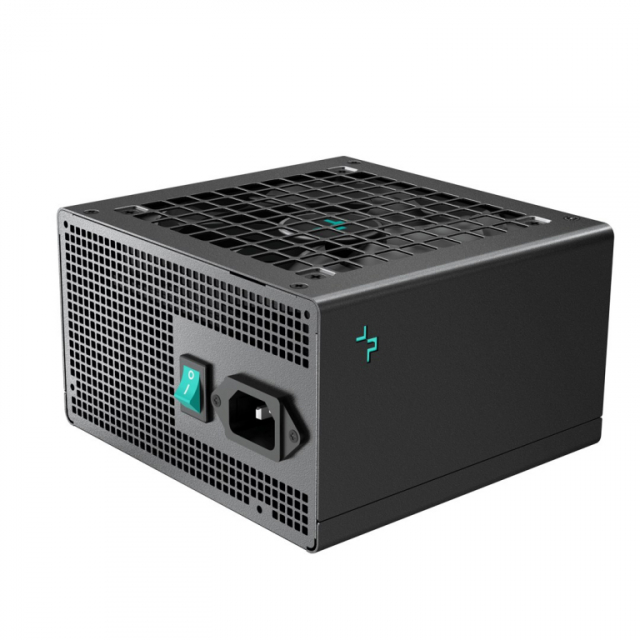

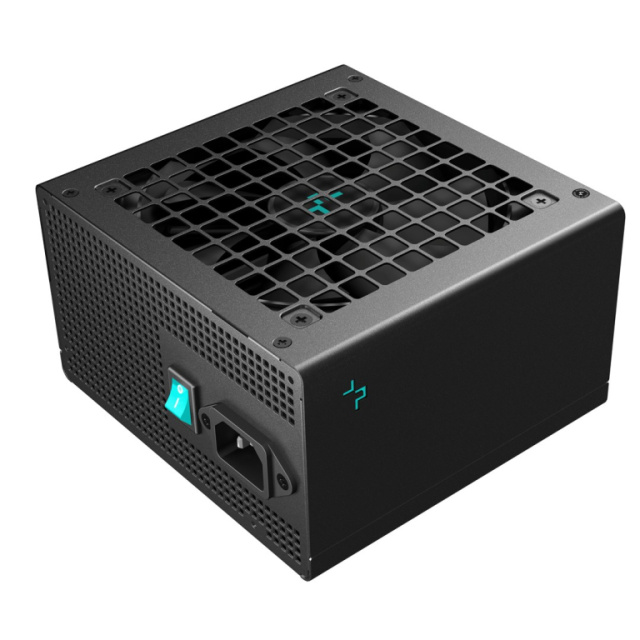

On/off switch | Yes |

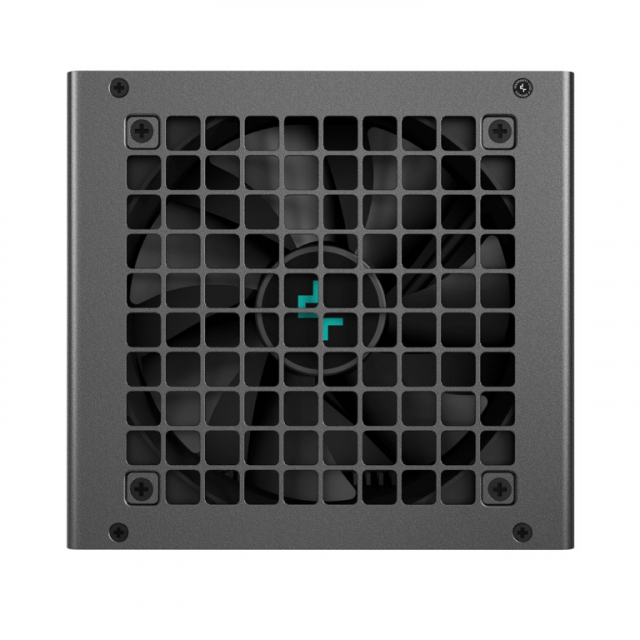

Fan location | Top |
Fan Diameter | 12 cm |
Number of fans | 1 fan(s) |

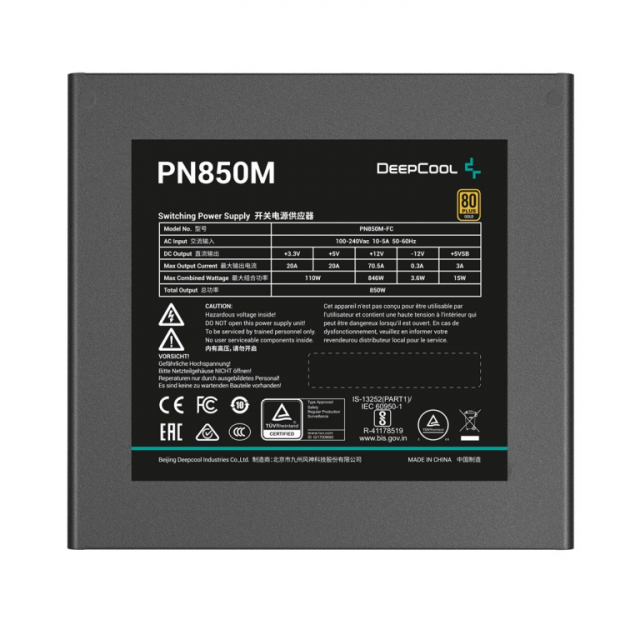

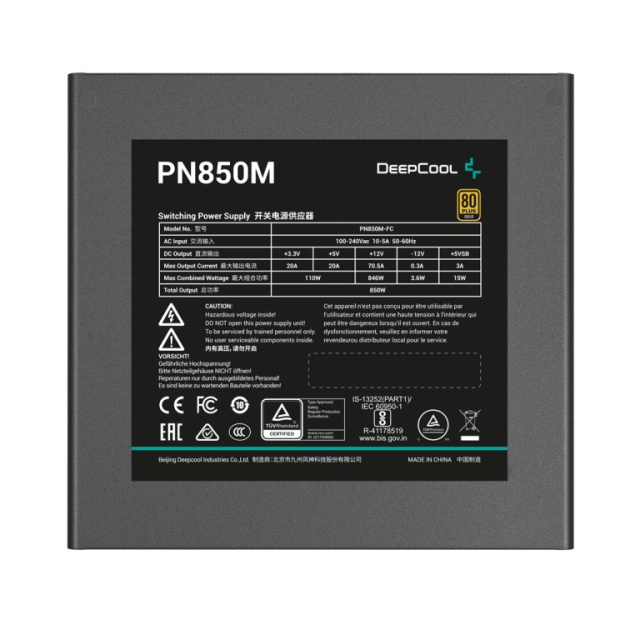

Input current | 10 - 5 A |
AC input voltage | 100 - 240 V |
Combined power (-12V) | 3.6 W |
Max output current (+5Vsb) | 3 A |
Max output current (+12V) | 70.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+3.3V) | 20 A |
Hold time | 16 ms |
Max output current (+5V) | 20 A |
AC input frequency | 50/60 Hz |
Power Good signal delay range | 100 - 150 ms |
Combined power (+5Vsb) | 15 W |
Combined power (+12V) | 846 W |
Efficiency | 90% |
Power protection features | Over power |
Combined power (+5V) | 110 W |
Combined power (+3.3V) | 110 W |
Power Factor Correction (PFC) type | Active |
Total power | 850 W |
Operating temperature (T-T) | 0 - 40 °C |
Depth | 140 mm |
Height | 86 mm |
Width | 150 mm |
80 PLUS Certification | 80 PLUS Gold |
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
Bearing technology | FDB |
Mean time between failures (MTBF) | 100000 h |
ATX version | 3.1 |
Package Type | Box |
Cable tie(s) included | Yes |

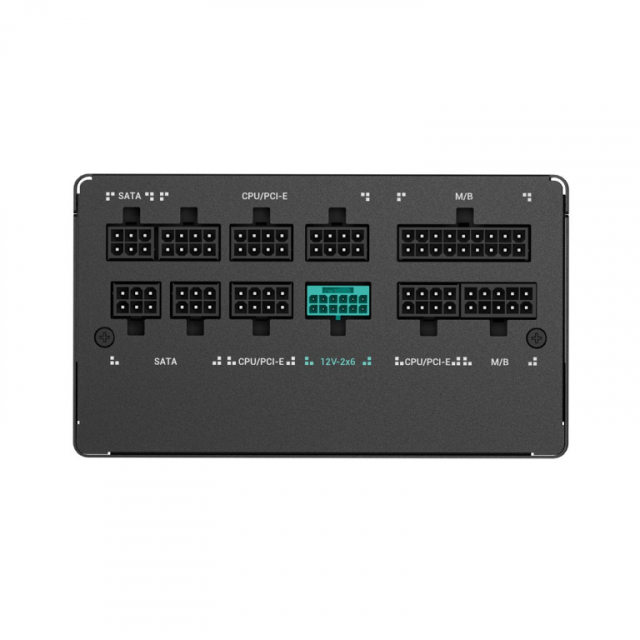

CABLES INCLUDED | AC |
Number of SATA power connectors | 8 |
Peripheral (Molex) power connectors (4-pin) | 2 |
SATA power cable length | 650 mm |
CPU power cable length | 70 cm |
ATX power connector (20+4 pin) | Yes |
CPU power connector (4+4 pin) | Yes |
Motherboard power cable length | 55 cm |
Peripheral (Molex) power cable length | 850 mm |
Motherboard power connector | 20+4 pin ATX |
PCI Express power connectors (16-pin) | 1 |
PCI Express power connectors (6+2 pin) | 3 |
Cabling Type | Fully-Modular |
