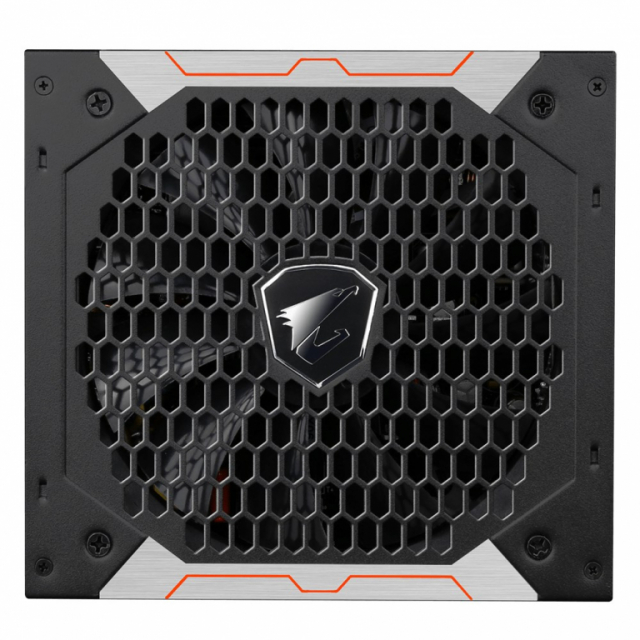

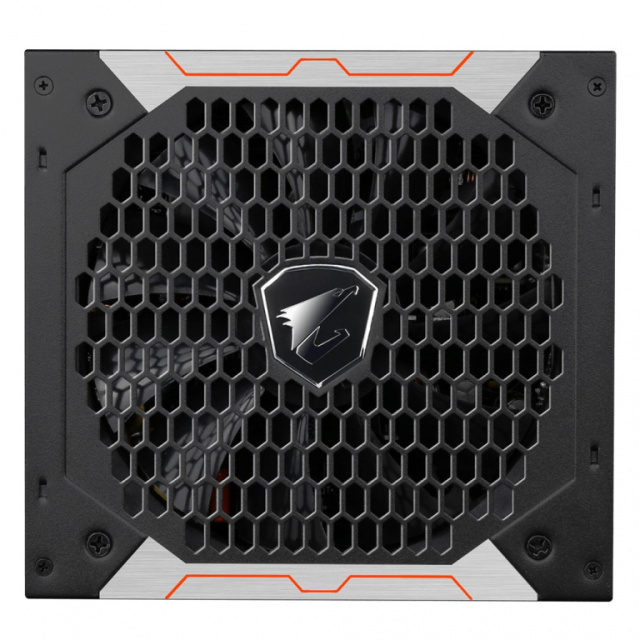

Fan Diameter | 13.5 cm |
Fan location | Top |
Product colour | Black |
Number of fans | 1 fan(s) |

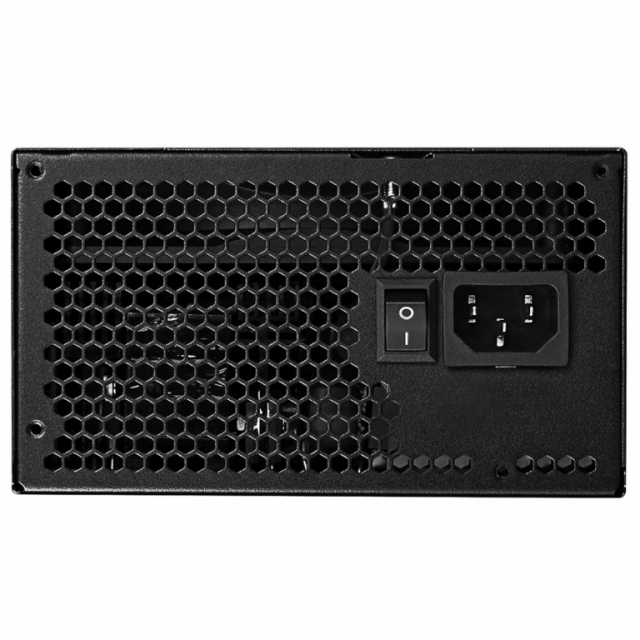

On/off switch | Yes |
Power protection features | Overheating |
Combined power (+5Vsb) | 15 W |
Max output current (+5V) | 20 A |
Power Good signal delay range | 100 - 150 ms |
Combined power (-12V) | 3.6 W |
Total power | 750 W |
Hold time | 16 ms |
Power Factor Correction (PFC) type | Active |
Max output current (+12V) | 62 A |
Combined power (+12V) | 744 W |
Max output current (+3.3V) | 20 A |
Combined power (+5V) | 120 W |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power factor | 0.9 |
Combined power (+3.3V) | 120 W |
Efficiency | 90% |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Input current | 10 A |
Width | 150 mm |
Depth | 160 mm |
Height | 86 mm |
Purpose | PC |
Mean time between failures (MTBF) | 100000 h |
ATX version | 2.31 |
Power supply unit (PSU) form factor | ATX |
80 PLUS Certification | 80 PLUS Gold |
PCI Express connector | Yes |
PCI Express power connectors (6+2 pin) | 6 |
SATA power cable length | 750 mm |

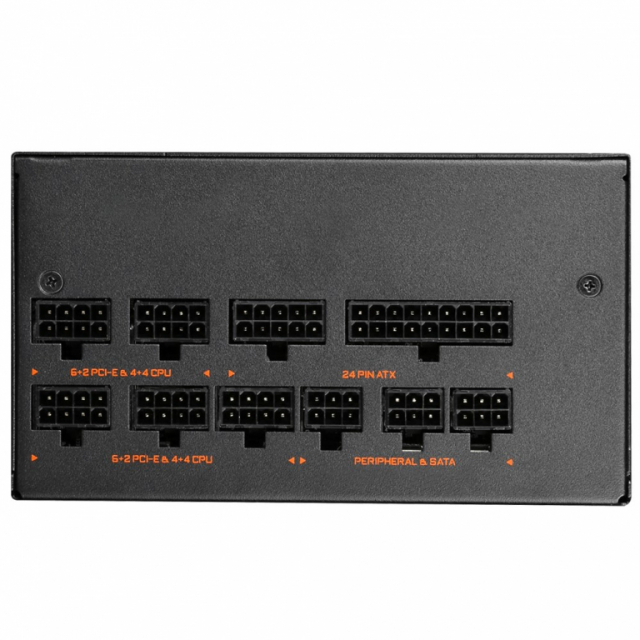

Motherboard power connector | 20+4 pin ATX |
Cabling Type | Fully-Modular |
Motherboard power cable length | 65 cm |
ATX power connector (20+4 pin) | Yes |
CPU power connector (4+4 pin) | Yes |
Floppy drive power connector | 2 |
Number of SATA power connectors | 6 |
Peripheral (Molex) power connectors (4-pin) | 6 |
Floppy disk drive connector | Yes |
EPS power connector (8-pin) | Yes |
Harmonized System (HS) code | 84733020 |
