Sustainability certificates | RoHS |

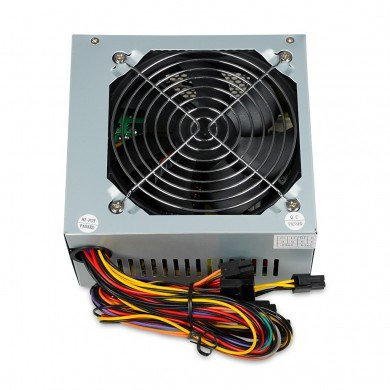

Fan Diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Side |
Cooling type | Active |
Product colour | Silver |
Combined power (+5Vsb) | 12.5 W |
Input current | 3 A |
Max output current (+5V) | 22 A |
Max output current (-12V) | 0.3 A |
AC input voltage | 230 V |
Max output current (+12V2) | 12 A |
Total power | 400 W |
Combined power (+5V) | 130 W |
Max output current (+3.3V) | 15 A |
Combined power (+3.3V) | 130 W |
Power Factor Correction (PFC) type | Passive |
Max output current (+5Vsb) | 2.5 A |
AC input frequency | 50 - 60 Hz |
Power protection features | Short circuit |
Max output current (+12V1) | 10 A |
Combined power (-12V) | 3.6 W |
Power consumption (max) | 400 W |
Width | 140 mm |
Height | 150 mm |
Depth | 85 mm |
Certification | CE |
ATX version | 2.2 |
Safety | UVP / OVP / SCP / OPP / OCP / OTP |
Noise level | 20 dB |
Power supply unit (PSU) form factor | ATX |
Motherboard power connector | 20+4 pin ATX |
ATX power connector (20+4 pin) | Yes |
Number of SATA power connectors | 2 |
Cabling Type | Non-Modular |
Peripheral (Molex) power connectors (4-pin) | 3 |
