On/off switch | Yes |
Cooling type | Active |

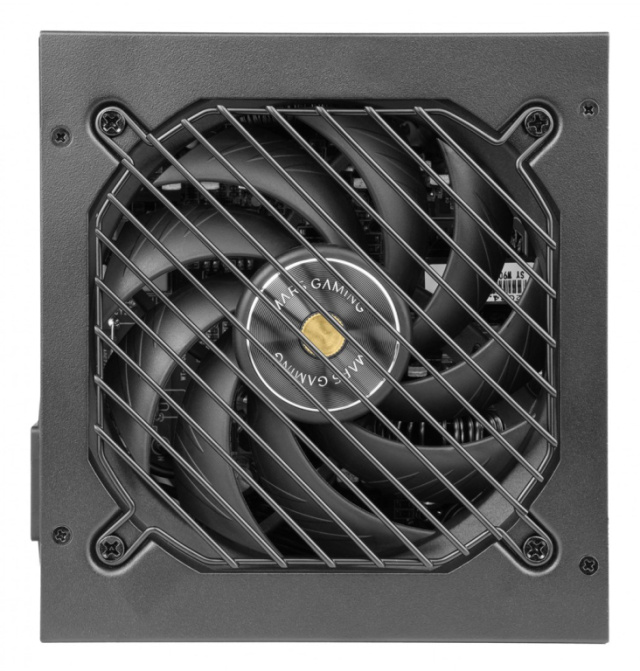

Fan location | Top |
Number of fans | 1 fan(s) |
Product colour | Black |
Fan Diameter | 14 cm |
Number of +12V rail(s) | 1 |
Combined power (+12V) | 1000 W |
AC input frequency | 47 - 63 Hz |
Power protection features | No load operation |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 150 W |
Total power | 1000 W |
Max output current (+12V) | 83.3 A |
AC input voltage | 220 - 240 V |
Combined power (+5Vsb) | 12.5 W |
Power factor | 0.9 |
Max output current (-12V) | 0.3 A |
Input current | 15 A |
Combined power (+3.3V) | 150 W |
Max output current (+3.3V) | 20 A |
Power Factor Correction (PFC) type | Active |
Efficiency | 90% |
Max output current (+5Vsb) | 2.5 A |
Max output current (+5V) | 20 A |
Weight | 1.75 kg |
Depth | 160 mm |
Width | 150 mm |
Height | 85 mm |
Bearing technology | FDB |
Power supply unit (PSU) form factor | ATX |
Noise level | 14 dB |
80 PLUS Certification | 80 PLUS Gold |
Purpose | PC |
Package depth | 136 mm |
Package Type | Box |
Package height | 206 mm |
Package width | 258 mm |
CABLES INCLUDED | CPU, PCIe, Peripheral (Molex), SATA |
Compliance certificates | RoHS |
Number of EPS connectors | 2 |
Number of SATA power connectors | 6 |
CPU power connector (4+4 pin) | Yes |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 3 |
PCI Express power connectors (6+2 pin) | 2 |

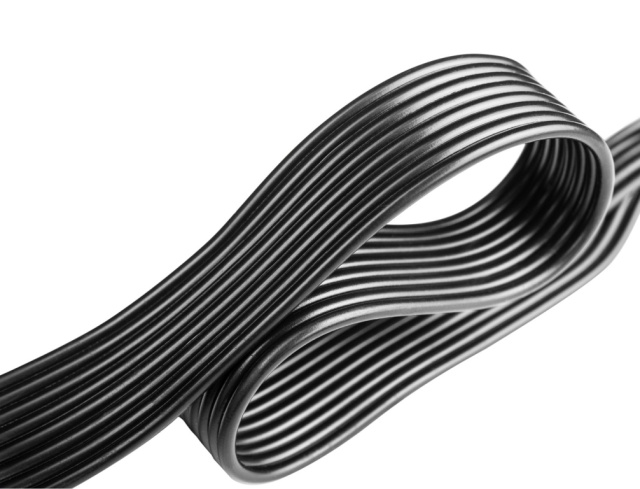

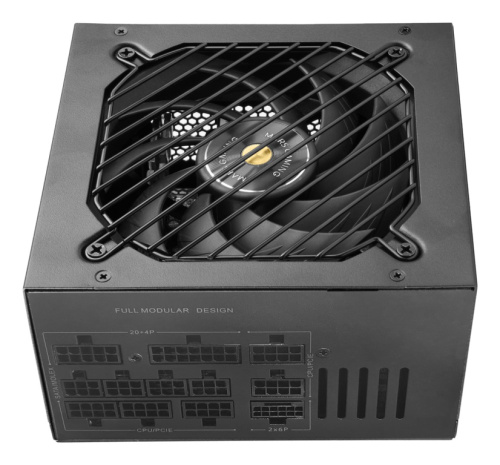

Cabling Type | Fully-Modular |
Motherboard power connector | 24-pin ATX |
ATX Power connector (24-pin) | Yes |
