Product colour | White |
On/off switch | Yes |

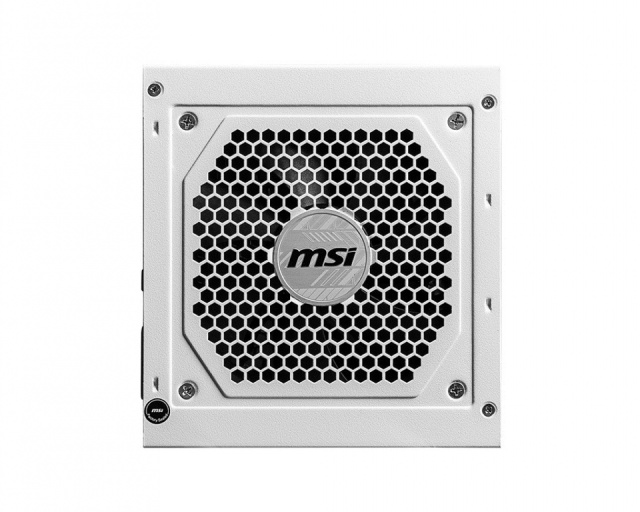

Number of fans | 1 fan(s) |
Fan Diameter | 12 cm |
Cooling type | Active |
Illumination | No |
Maximum input current (@220V) | 4 A |
Maximum input current (@110V) | 8 A |
Power protection features | Over power |
AC input frequency | 47 - 63 Hz |
Total power | 850 W |
Combined power (+5Vsb) | 12.5 W |
Power Factor Correction (PFC) type | Active |
AC input voltage | 100 - 240 V |
Efficiency | 90% |
Combined power (+3.3V) | 110 W |
Max output current (+5V) | 20 A |
Max output current (+5Vsb) | 2.5 A |
Combined power (+12V) | 846 W |
Combined power (-12V) | 3.6 W |
Max output current (+12V) | 70.5 A |
Combined power (+5V) | 110 W |
Max output current (+3.3V) | 20 A |
Max output current (-12V) | 0.3 A |
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
80 PLUS Certification | 80 PLUS Gold |
Package Type | Box |
ATX power connector (20+4 pin) | No |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 4 |
ATX Power connector (24-pin) | No |
Number of SATA power connectors | 8 |

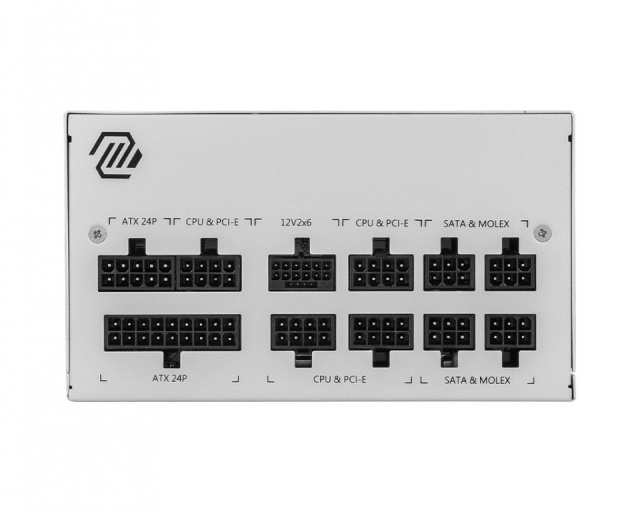

Cabling Type | Fully-Modular |
EPS power connector (8-pin) | No |
PCI Express power connectors (6+2 pin) | 4 |
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
Harmonized System (HS) code | 84733020 |
