Pure Power 12 | ATX 3.1 | 750 Watts | Cooling System 12cm fan | 80 PLUS GOLD | PFC Active | MTBF 100000 hours | Colour Black

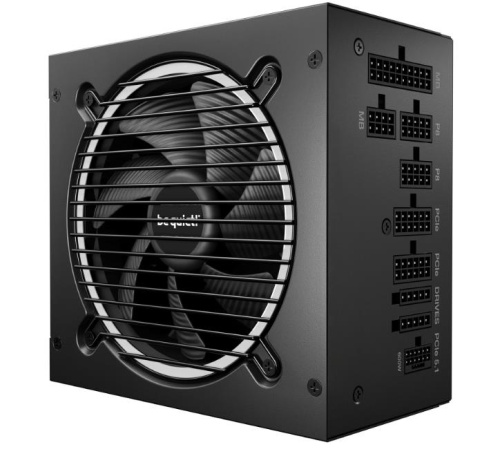

Description | Exceptional quiet, superior features Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.80 PLUS® Gold efficiency (up to 94.3%)ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectorsHandles massive power excursionsExceptionally silent semi-passive 120mm be quiet! fanSemi-passive construction for quiet and energy-saving operationLLC technology for advanced stability and voltage regulationOne massive high-performance 12V-railOne PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUsFull suite of safety featuresMeets latest requirements for modern standby |
Summary | be quiet! Pure Power 13 M | 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA |
Vendor Homepage | https://www.bequiet.com/en/download/powersupply/5931?utm_source=newsletter |
Category Code | PSU |
Unit Box Height | 0.205 |
Unit Box Length | 0.29 |
Unit Box Width | 0.1 |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 120 W |
Combined power (+5V) | 120 W |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Efficiency | 92.6 % |
Hold time | 28.62 ms |
Max output current (+12V1) | 62.5 A |
Max output current (+3.3V) | 20 A |
Max output current (+5V) | 20 A |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Maximum input current (@110V) | 10 A |
Maximum input current (@220V) | 5 A |
Number of +12V rail(s) | 1 |
Peak power | 820 W |
Power factor | 0.98 |
Power Factor Correction (PFC) type | Active |
Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage |
Total power | 750 W |
Cabling Type | Fully-Modular |
CPU P4 connector (4-pin) | 2 |
CPU power cable length | 650 mm |
CPU power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Motherboard power cable length | 550 mm |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 6 |
PCI Express power connectors (12-pin) | 1 |
PCI Express power connectors (6+2 pin) | 4 |
Peripheral (Molex) power cable length | 800/950 mm |
Peripheral (Molex) power connectors (4-pin) | 2 |
SATA power cable length | 500/650/800/950 mm |
80 PLUS Certification | 80 PLUS Gold |
ATX version | 3.1 |
Bearing technology | Rifle |
EPS version | 2.92 |
Mean time between failures (MTBF) | 100000 h |
Noise level | 20.8 dB |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Cooling type | Active |
Fan Diameter | 120 mm |
Fan speed | 0 - 1800 RPM |
Number of fans | 1 fan(s) |
On/off switch | Yes |
Product colour | Black |
Operating temperature (T-T) | 0 - 40 °C |
CABLES INCLUDED | AC,CPU,PCIe,Peripheral (Molex),SATA |
Compliance certificates | BSMI/CB/CCC/CE/cTUVus/Federal Communications Commission (FCC)/IRAM/RCM/RoHS/TÜV mark/UKCA/WEEE |
Depth | 160 mm |
Height | 86 mm |
Weight | 2460 g |
Width | 150 mm |
Package depth | 320 mm |
Package height | 133 mm |
PACKAGE WEIGHT | 3200 g |
Package width | 210 mm |
Sustainability certificates | ENERGY STAR/ErP |
Cable ties included | Yes |
Screws included | Yes |
Model name | Pure Power 12 |
Units per Shipping Box | 6 |
Unit Calculated Volume | 0.008568 cubm |
Unit Calculated Weight | 3.14 kg |
