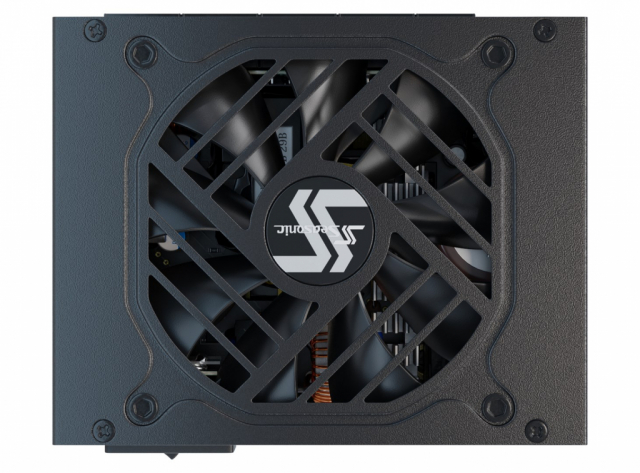

Number of fans | 1 fan(s) |
Cooling type | Active |
Fan Diameter | 9.2 cm |
Product colour | Black |

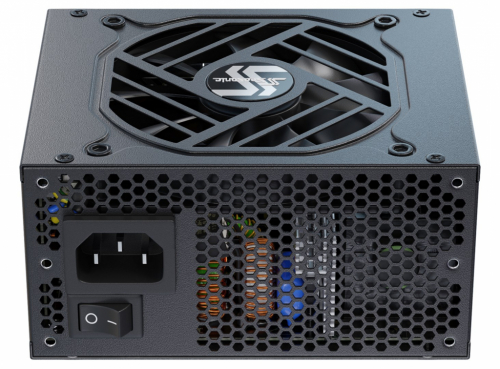

On/off switch | Yes |
Combined power (+12V) | 744 W |
Combined power (-12V) | 3.6 W |
Combined power (+3.3V) | 130 W |
Max output current (+12V) | 62 A |
Total power | 750 W |
Max output current (-12V) | 0.3 A |
Power protection features | Over current |
AC input voltage | 100 - 240 V |
Max output current (+5V) | 20 A |
Combined power (+5Vsb) | 15 W |
Max output current (+5Vsb) | 3 A |
Input current | 10 - 5 A |
AC input frequency | 50 - 60 Hz |
Combined power (+5V) | 130 W |
Max output current (+3.3V) | 20 A |
Operating temperature (T-T) | 0 - 50 °C |
Height | 63.5 mm |
Depth | 100 mm |
Width | 125 mm |
Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Power supply unit (PSU) form factor | CFX |
Purpose | PC |
Mean time between failures (MTBF) | 100000 h |
80 PLUS Certification | 80 PLUS Platinum |
Bearing technology | FDB |
Package Type | Box |
Cable tie(s) included | Yes |
CABLES INCLUDED | AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
Motherboard power connector | 20+4 pin ATX |
PCI Express power connectors (8-pin) | 4 |
Motherboard power cable length | 35 cm |
Number of SATA power connectors | 6 |

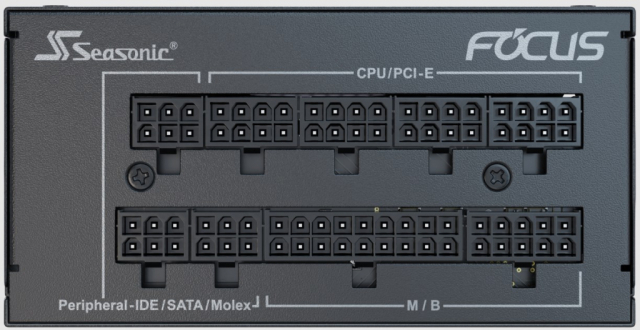

Cabling Type | Fully-Modular |
Peripheral (Molex) power connectors (4-pin) | 3 |
