Product colour | Black |
Cooling type | Active |
Number of fans | 1 fan(s) |
On/off switch | Yes |
Fan Diameter | 13.5 cm |
Power protection features | Under voltage |
Total power | 850 W |
Max output current (+5Vsb) | 3 A |
Combined power (+3.3V) | 125 W |
Input current | 11 - 5.5 A |
Max output current (+12V) | 70 A |
Max output current (+5V) | 20 A |
AC input voltage | 100 - 240 V |
Combined power (+5Vsb) | 15 W |
Max output current (-12V) | 0.3 A |
AC input frequency | 50 - 60 Hz |
Combined power (-12V) | 3.6 W |
Combined power (+12V) | 840 W |
Combined power (+5V) | 125 W |
Max output current (+3.3V) | 20 A |
Operating temperature (T-T) | 0 - 50 °C |
Depth | 160 mm |
Height | 86 mm |
Width | 150 mm |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
80 PLUS Certification | 80 PLUS Gold |
ATX version | 3.0 |
Bearing technology | FDB |
Mean time between failures (MTBF) | 150000 h |
Package Type | Box |

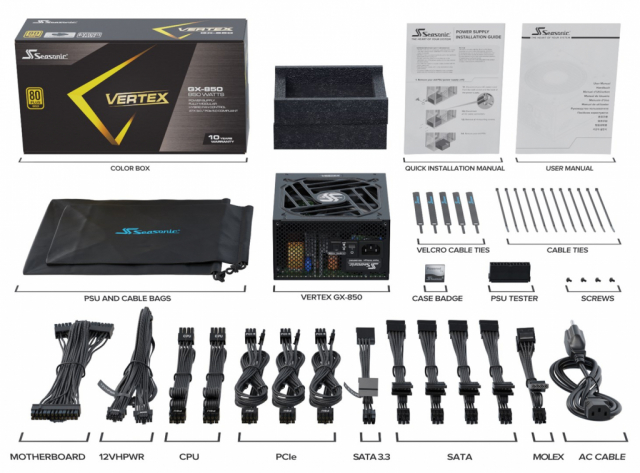

CABLES INCLUDED | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
Cable tie(s) included | Yes |
Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Compliance certificates | REACH |
Peripheral (Molex) power cable length | 690 mm |
SATA power cable length | 950 mm |

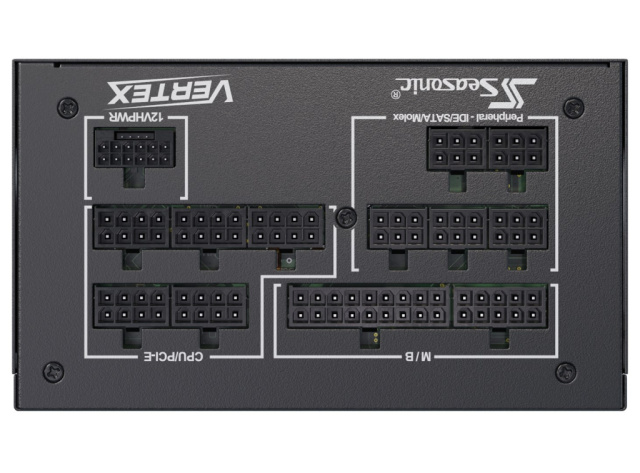

Cabling Type | Fully-Modular |
Number of SATA power connectors | 4 |
Peripheral (Molex) power connectors (4-pin) | 1 |
Motherboard power cable length | 61 cm |
CPU power cable length | 65 cm |
CPU P4 connector (4-pin) | 2 |
CPU power connector (4+4 pin) | Yes |
ATX power connector (20+4 pin) | Yes |
Motherboard power connector | 20+4 pin ATX |
Warranty period | 10 year(s) |
Hazard pictogram(s) | GHS02: Flammable |
Warnings | The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations. |
