processor | |
GPU family | Intel |

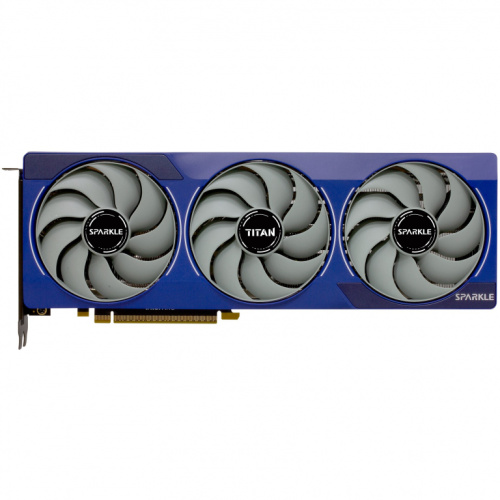

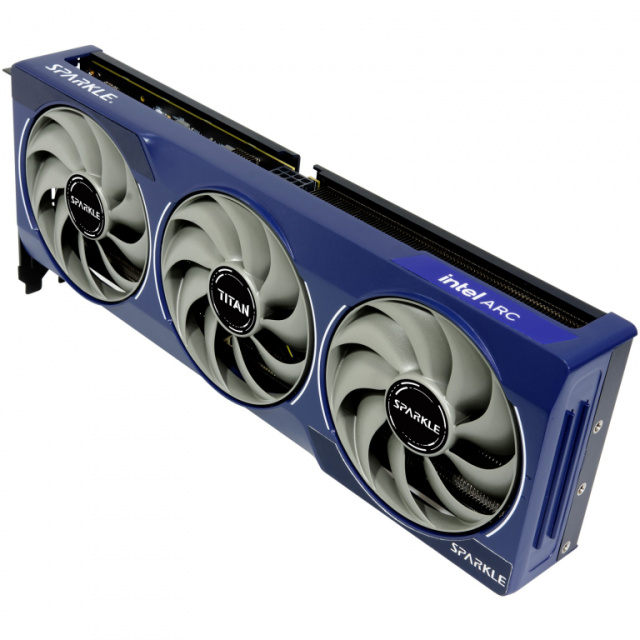

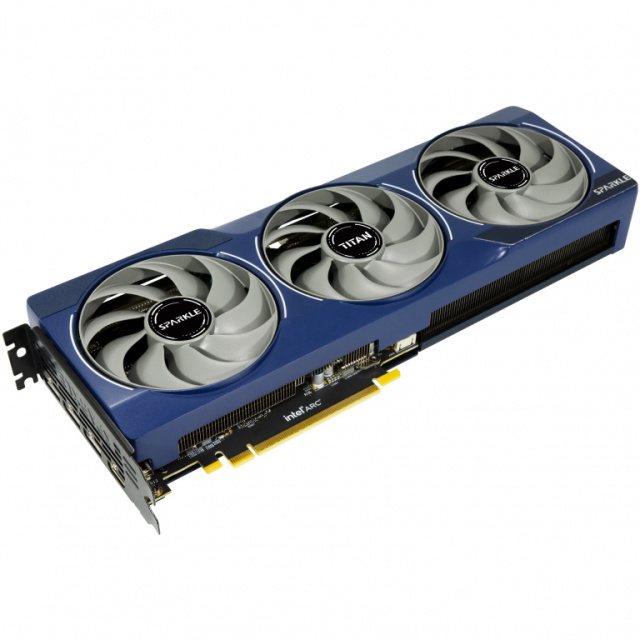

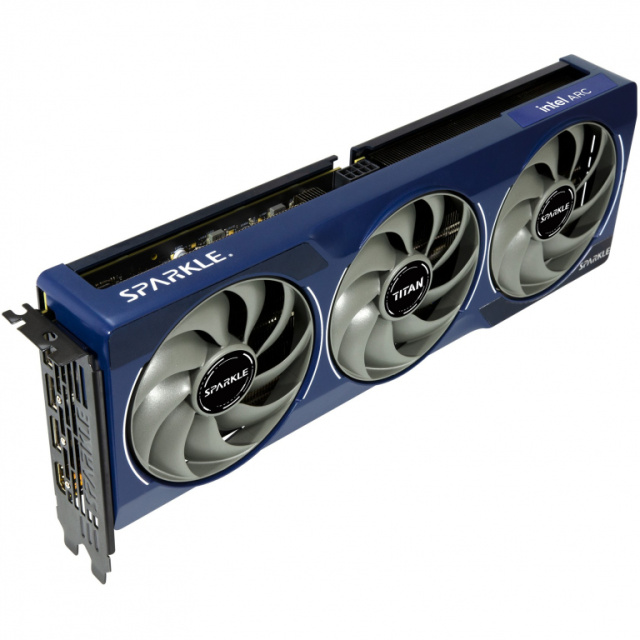

GPU | Arc B580 |
processor clock speed | 2740 MHz |
Maximum resolution | 7680 x 4320 Pixel |
Parallel processing technology | Nicht unterstützt |
Maximale Displays pro Videokarte | 4 |
Radiation Accelerator | 20 |
Storage | |
Separate graphics adapter memory | 12 GB |
Graphics card memory type | GDDR6 |
Memory interface width | 192 Bit |
Memory bandwidth (max) | 456 GB/s |
connections and interfaces | |
interface | PCI Express x8 4.0 |
Number of HDMI ports | 1 |
HDMI-Version | 2.1 |
Number of DisplayPort connections | 3 |
DisplayPorts-Version | 2.1 |
Services | |
DirectX-Version | 12 Ultimate |
OpenGL-Version | 4.6 |
OpenCL-Version | 3.0 |
Intel® Xe Matrix Extensions (Intel® XMX) Motoren | 160 |
Xe-Kerne | 20 |
NPU-Leistung bis zu | 233 TOPs |
Design | |
cooling | Aktiv |
number of fans | 3 Lüfter |
number of slots | 2,2 |
Product color | Blau |
energy | |
My. System power failure | 600 W |
Power consumption (standard operation) | 200 W |
Additional power connections | 1x 8-pin |
Power supply placement | Oben |
system requirement | |
Supports Windows operating systems | Windows 10, Windows 11 |
Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
Minimum required RAM | 8000 MB |
weight and dimensions | |
Weight | 954 g |
Length (mm) | 315 mm |
depth | 44 mm |
height | 117 mm |
packaging type | Box |
Other functions | |
Eigenschaft | HDMI |
