AMD | Graphics processor Radeon RX 7600 | 2355 MHz | Memory 8 GB | Graphics card memory type GDDR6 | 128 bit | PCI Express 4.0 | 2xHDMI | 2xDisplay ports | Cooling type Active
| Description | WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
HEAT PIPES DIRECT TOUCH The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
Powered by Radeon™ RX 7600Integrated with 8GB GDDR6 128-bit memory interfaceWINDFORCE cooling systemRGB FusionProtection metal back plate |

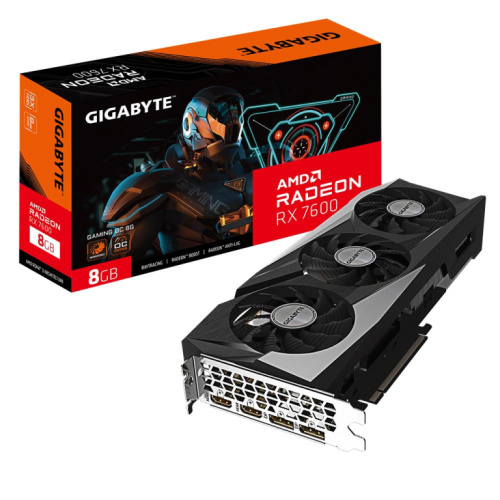

| Summary | GIGABYTE GAMING Radeon RX 7600 OC 8G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600, Processor frequency: 2355 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi |
| Vendor Homepage | https://www.gigabyte.com/Graphics-Card/GV-R76GAMING-OC-8GD#kf |
| Category Code | VGP |
| CnCode | 84718000 |
| Unit Box Height | 0.405 |
| Unit Box Length | 0.237 |
| Unit Box Width | 0.089 |
| MIRACLES | No |
| Graphics processor | Radeon RX 7600 |
| Graphics processor family | AMD |
| Maximum displays per videocard | 4 |
| Maximum Resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2755 MHz |
| Processor frequency | 2355 MHz |
| Stream Processors | 2048 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1a |
| Interface Type | PCI Express 4.0 |
| USB Type-C ports quantity | 1 |
| AMD FreeSync | Yes |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Bracket height | Full-Height (FH) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of fans | 3 fan(s) |
| Product colour | Black |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Depth | 50 mm |
| Height | 115 mm |
| Length | 287 mm |
| Package Type | Box |
| User guide | Yes |
| Model | GV-R76GAMING OC-8GD 1.1 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.01002 cubm |
| Product Net Weight | 0.8 kg |
| Unit Calculated Weight | 1.5 kg |
