Requires Expansion Slot Standard | PCI Express 5.0 |
Form factor | Full-Size |

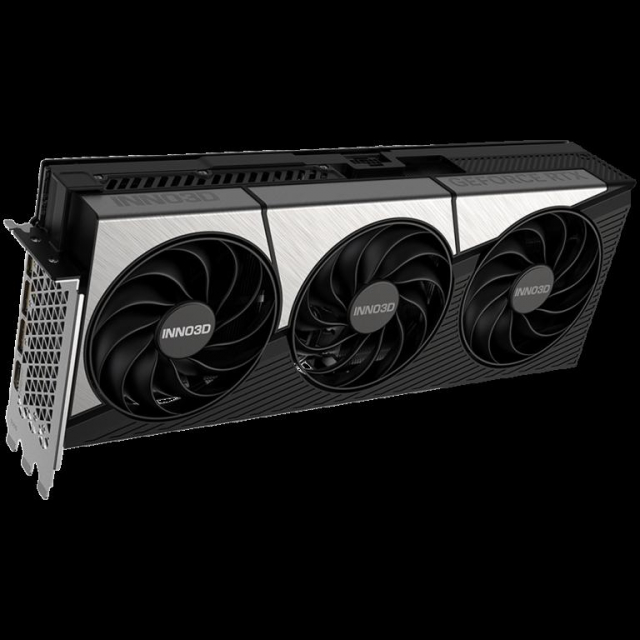

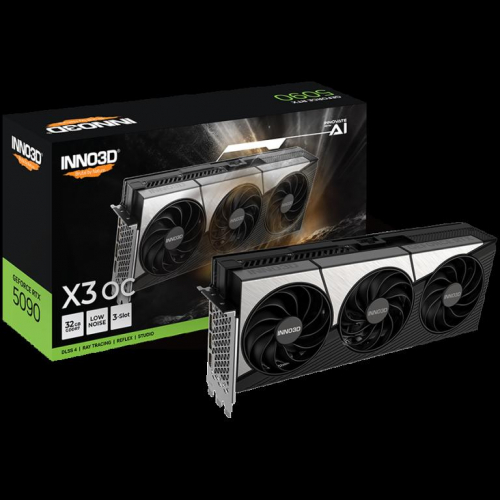

Video Chipset | Nvidia GeForce RTX 5090 |
GPU Core Name | GB202-300 |
GPU Core Speed | 2017 MHz |
GPU Core Speed Boost | 2452 MHz |
GPU Quantity | 1 |
Stream Processors Quantity | 21760 |
Texture Mapping Unit Quantity | 680 |
Render Output Units Quantity (ROP) | 176 |
Tensor Core Quantity | 680 |
Ray-tracing Cores Quantity | 170 |
Max. Monitors Supports | 4 |
Maximum Resolution | 7680x4320 |
Vertical Synchronization at Max. Resolution | 165 Hz |
2D/3D Features | HDCP(High-Bandwidth Digital Content Protection) Nvidia GPU Boost Nvidia G-Sync Nvidia ShadowPlay Nvidia Ansel Nvidia Highlights NVIDIA FreeStyle NVIDIA Game Ready NVIDIA Studio NVIDIA Broadcast NVIDIA Encoder NVIDIA Decoder 5th Tensor Cores 4th Ray Tracing Cores NVIDIA DLSS 4 NVIDIA Reflex 2 NVIDIA ACE NVIDIA Blackwell Architecture |
API Supports | OpenGL 4.6 DirectX 12 Ultimate Vulkan 1.4 |
Video Memory Type | Video Controller Memory |
Memory type | GDDR7 |
Installed Video Memory Storage Capacity | 32 GB |
Video Memory Speed | 28 Gbps |
Memory Bus Bandwidth | 512 bit |
Memory Bandwidth | 1792 GB/s |
HDMI Interface Quantity | 1 |
HDMI Interface Connector Type | HDMI (Type A) |
DisplayPort Interface Quantity | 3 |
External Power | 16 pin |
PSU Output Power Required | 1000 W |
Cooling System Type | VGA Cooler |
Video Card Features | LED Lighting |
Included Accessories | Documentation Graphics Card Holder |
Depth (mm) | 333 mm |
Height (mm) | 60 mm |
Width (mm) | 137 mm |
Warranty Term (month) | 36 month(s) |
Warranty Validation Criteria | Serial Number |
Pack Length (mm) | 333 mm |
Pack Width (mm) | 137 mm |
Pack Height (mm) | 60 mm |
Box Weight Brutto (kg) | 10 kg |
Package Type | Retail |
EAN Code | 8886307700131 |
