| Supported graphics resolutions | 1920 x 1440 |
| Output impedance | 75 Ω |
| Maximum Resolution | 1920 x 1440 pixels |
| Maximum operating distance | 10 m |
| Material | Plastic |
| LED indicators | Yes |
| Bandwidth | 150 MHz |
| Product colour | Silver |
| Input Impedance | 75 Ω |
| Maximum refresh rate | 60 Hz |
| Power consumption (typical) | 0.82 W |
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Height | 44 mm |
| Width | 65.2 mm |
| Weight | 220 g |
| Depth | 120 mm |
| PACKAGE WEIGHT | 360 g |
| Package height | 160 mm |
| Package width | 59 mm |
| Package depth | 239 mm |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |

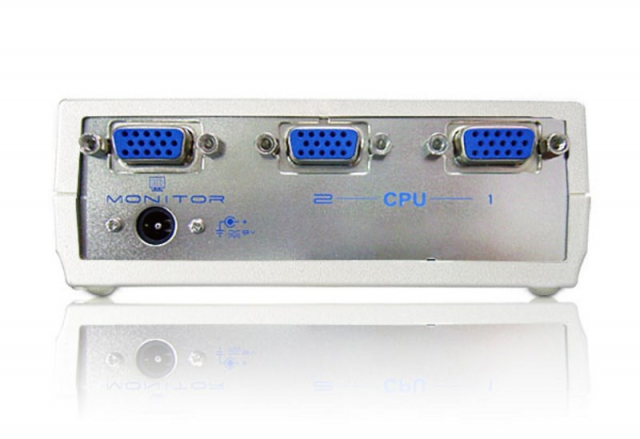

| VGA (D-Sub) output ports | 1 |
| VGA (D-Sub) ports quantity | 3 |
| VGA (D-Sub) input ports | 2 |
| DC-in jack | Yes |
| Video port type | VGA |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 315 mm |
| Master (outer) case net weight | 4.4 kg |
| Master (outer) case height | 338 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case gross weight | 7.9 kg |
