Receiver sensitivity | 2.4G
802.11b:-100dBm @1Mbps,-93dBm@11Mbps;802.11g:-95dBm @6Mbps,-76dBm@54Mbps;
802.11n 20MHz:-72dBm @MCS7;802.11n 40MHz:-70dBm @MCS7
5G
802.11a:-93dBm @6Mbps,-76dBm @54Mbps;802.11ac 20MHz:-68dBm @MCS8;802.11acHT40:-
65dBm @MCS9;802.11ac 80MHz:-60dBm @MCS9 |
Transmitting power | 26 dBmW |
DESPITE | Yes |
Frequency Band | 2400 - 24835, 5150 - 5250, 5725 - 5850 GHz |
Ethernet LAN data rates | 10 |
Maximum data transfer rate | 867 Mbit/s |
2.4 GHz | Yes |
5 GHz | Yes |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Networking standards | IEEE 802.11a |
Channel bandwidth | 80 MHz |
Maximum outdoor range | 300 m |
MIMO type | Multi User MIMO |
Quality of Service (QoS) support | Yes |
Certification | FCC, CE, RCM, IC |
Product colour | White |

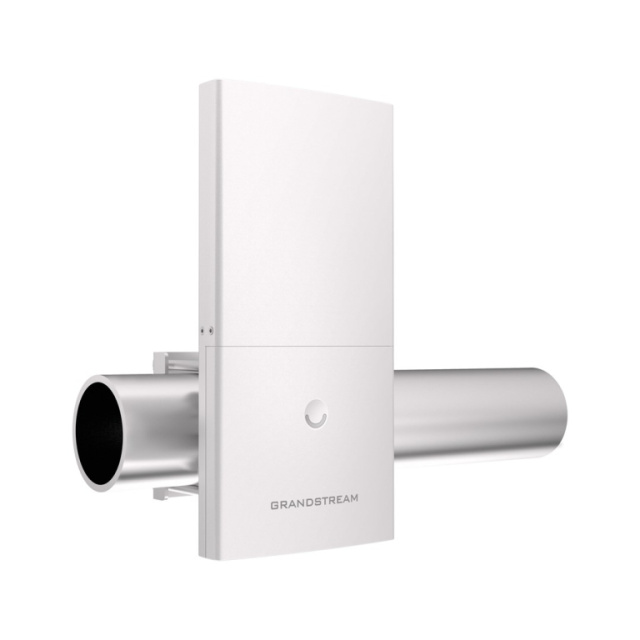

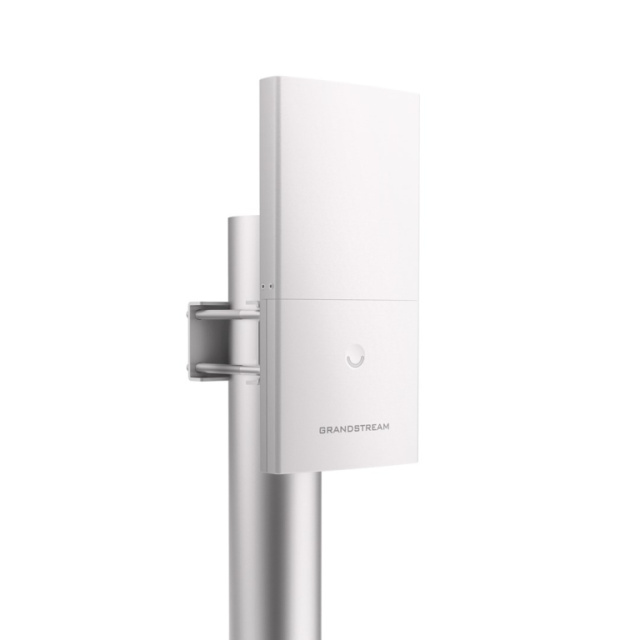

Placement | Pole |
International Protection (IP) code | IP66 |
LED indicators | Status |
Internal | No |
Power Over Ethernet (PoE) | Yes |
Number of SSID supported | 16 |
Service Set Identifier (SSID) features | Hidden SSID |
Security algorithms | WEP |
Operating temperature (T-T) | -30 - 60 °C |
Storage relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -30 - 70 °C |
Weight | 708 g |
Height | 290 mm |
Width | 150 mm |
Depth | 35 mm |
PACKAGE WEIGHT | 1.84 kg |
Package volume | 423 cm³ |
Package height | 97 mm |
Package depth | 187 mm |
Quick start guide | Yes |
Number of products included | 1 pc(s) |

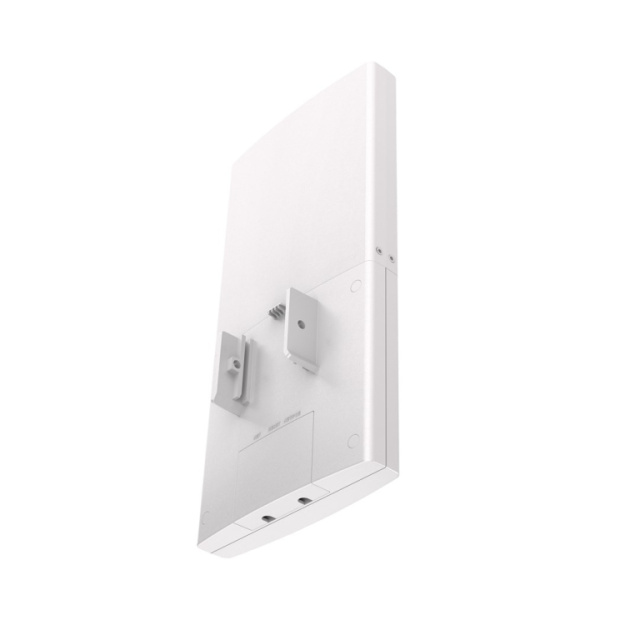

Mounting Kit | Yes |
Supported network protocols | IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
Ethernet LAN (RJ-45) ports | 2 |
Antenna type | Internal |
Antennas quantity | 4 |
Antenna gain level (max) | 5 dBi |
Antenna features | Integrated antenna |
