Sustainability certificates | CE |
Mounting style | On the wall/gate |
Maximum number of cameras supported | 1 |
Connectivity Technology | Wired & Wireless |
Speakerphone | Yes |
Onvif standard | Yes |
Colour | Yes |
Product colour | Silver |
Placement supported | Indoor/outdoor |
RAM Capacity | 128 MB |
I code | IK08 |
International Protection (IP) code | IP65 |
Flash Memory | 32 MB |
Control Type | Buttons, Touch |
Power Over Ethernet (PoE) | Yes |
Power consumption (max) | 10 W |
Power supply voltage | 48 V |
Operating relative humidity (H-H) | 10 - 95% |

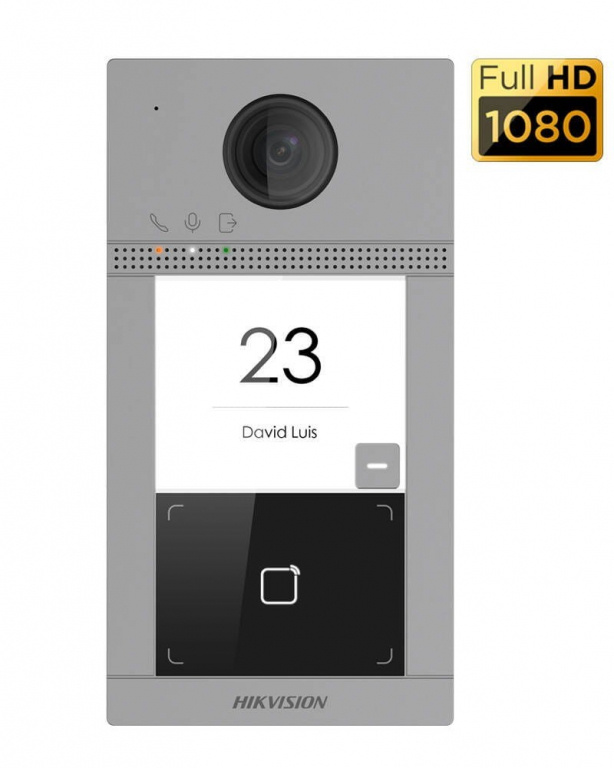

Dimensions of the outdoor unit | 174 x 91 x 29 mm |

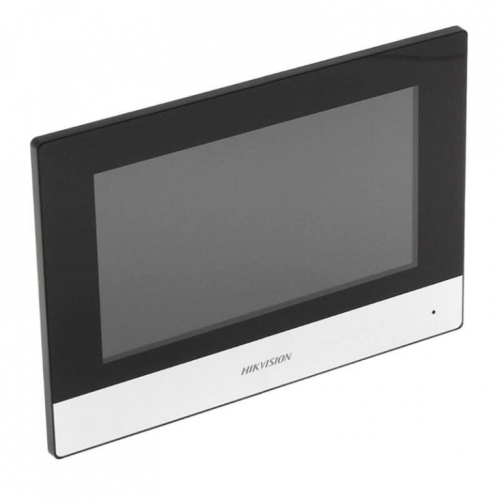

Dimensions of the indoor unit | 200 x 140 x 15,1 mm |
Switch dimensions | 105 x 86 x 28 mm |
Ethernet LAN data rates | 10,100 Mbit/s |
Wi-Fi | IEEE802.11b/g/n |
Alarm input/output | Yes |
Ethernet LAN (RJ-45) ports | 5 |
Wi-Fi band | Single-band (2.4 GHz) |
AC adapter included | Yes |

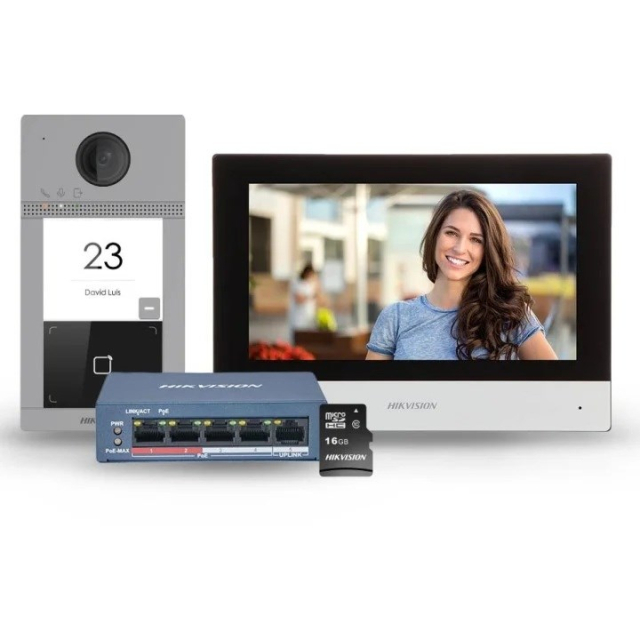

Set contents | Hikvision Door Station DS-KV8113-WME1 |
Touchscreen | Yes |
Video formats supported | H.264 |
Panel type | TFT |
Display resolution | 1024 x 600 pixels |
Display diagonal | 17.8 cm (7") |
Colour display | Yes |
Cloud-managed | Yes |
Operating system installed | Embedded LINUX |
Smartphone/tablet remote support | Yes |
Dedicated application | Hik-Connect (Android, iOS) |
OPERATING SYSTEM LANGUAGE | English |
Built-in microphone | Yes |
Echo cancellation | Yes |
Noise canceling | Yes |
Built-in speaker(s) | Yes |
Two-way talk | Yes |
Volume control | Yes |
Microphone direction type | Omnidirectional |
Megapixel (approx.) | 2 MP |
Viewing angle, vertical | 75° |
Viewing angle, horizontal | 129° |
Motion Detection | Support |
Back Light Compensation (BLC) | Yes |
Maximum Frame Rate | 30 fps |
IR infrared range | 3 m |
Maximum Video Resolution | 1920 x 1080 pixels |
Night Vision | Yes |
Infrared (IR) camera | Yes |
Noise reduction | Yes |
Warnings | Do not expose to moisture or extreme temperatures as this may damage the unit. |
