Input voltage | 5.5 V |
Power source type | USB |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 50 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight | 318 g |
Width | 86 mm |
Height | 145 mm |
Depth | 83 mm |
Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
International Protection (IP) code | IP52 |
Product colour | Black |
Standard interfaces | RS-232, USB |
Connectivity Technology | Wired |
Harmonized System (HS) code | 84716070 |
Working distance | 66 cm |
Optical sensor resolution (W x H) | 1280 x 800 pixels |
2D (matrix & stacked) barcodes supported | MaxiCode |

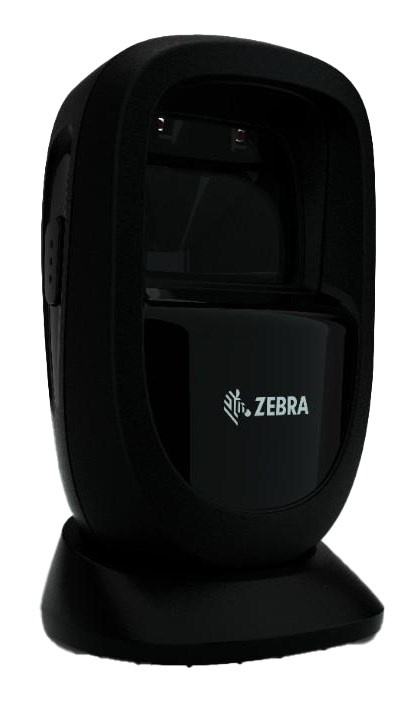

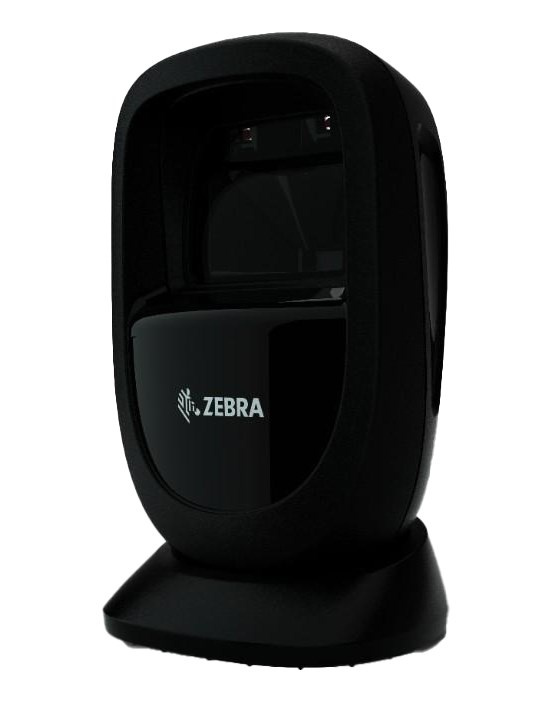

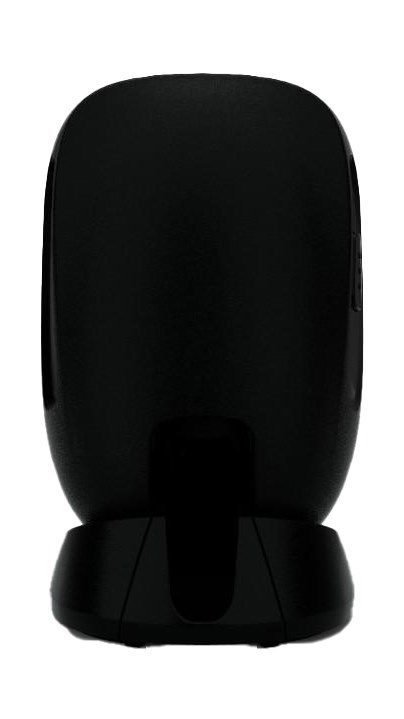

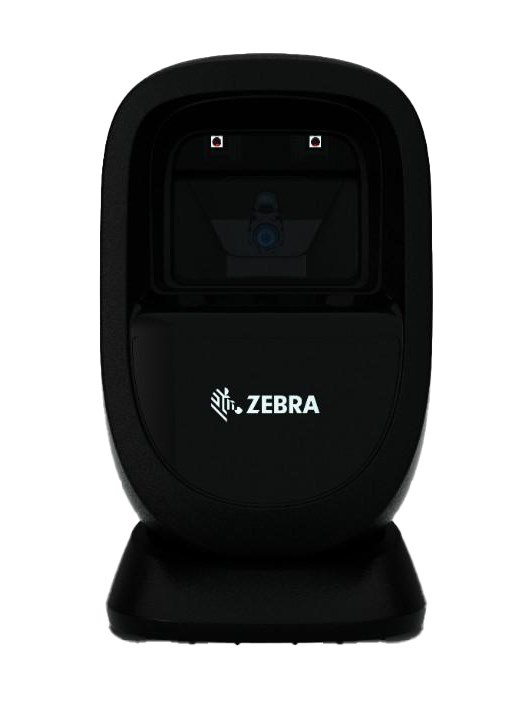

Type | Fixed bar code reader |
Light levels (direct sunlight) | 0 - 107700 lx |
Linear (1D) barcodes supported | Code 93 |
Scanner type | 1D/2D |
Sensor type | LED |
Pitch reading angle | -60 - 60° |
