Type HDTV/Megapixel/Outdoor | Video interface HDCVI | Sensor size 1/2.7" | Focal Length 3.6mm | Min. Illumination 0.04 Lux | Effective pixels 1920(H)×1080(V) | Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s | 1xBNC | Power supply requirements 12 VDC | Dimensions 70 x 70 x 149mm

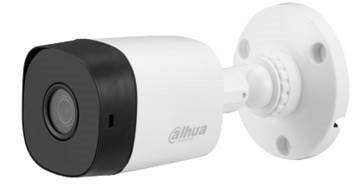

| Description | Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Cooper series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) trans-mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.
- 1920×1080 @25FPS max
- 1/2.7" 2 Megapixel CMOS
- Sensitivity: 0.04Lux/F1.85, 30IRE, 0Lux IR on
- 3.6 mm lens, angle of view: 93°
- True Day / Night with ICR Filter, Smart IR LED up to 20 m
- BLC / HLC / DWDR / 2D DNR / Multi-language OSD
- 1-channel BNC high definition video output / CVBS video output (Can switch)
- Plastic shell, IP67, outdoor/indoor use, -40°C~+60°C
- Power 12 VDC, 2.7W max
- Compatible with PFA134 junction boxes.
|
| Страница производителя | www.dahuasecurity.com/products/productDetail/24017 |
| Дизайн камеры | Bullet |
| Тип IP-камеры | HDTV/Megapixel/Outdoor |
| Видеоинтерфейс | HDCVI |
| Эффективное количество пикселов | 2 Mega Pixel |
| Чистое разрешение камеры | 2 - 4MP |
| Размер сенсора | 1/2.7" |
| Фокусное расстояние объектива | 3.6 - 4mm |
| Светочувствительность | 0.04 Lux |
| ИК-подсветка | Yes |
| Кол-во эффективных пикселей | 1920(H)×1080(V) |
| Выдержка (с электронным управлением) | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| BNC коннектор | 1 |
| Параметры питания | 12V |
| Требование к блоку/адаптеру питания | 12 VDC |
| Энергопотребление | 2.7 Watts |
| Окружающая обстановка | Outdoor |
| Размер (физические параметры) | 70 x 70 x 149mm |
| Вес | 0.14 kg |
| Вес брутто | 0.2 kg |
| Ширина коробки блока | 0.08 |
| Длина коробки блока | 0.165 |
| Высота коробки блока | 0.09 |
| Полное подробное описание | Type HDTV/Megapixel/Outdoor|Video interface HDCVI|Sensor size 1/2.7"|Focal Length 3.6mm|Min. Illumination 0.04 Lux|Effective pixels 1920(H)×1080(V)|Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s|1xBNC|Power supply requirements 12 VDC|Dimensions 70 x 70 x 149mm |
| Код категории | HSC |
