Type HDTV/Megapixel/Outdoor | Pixel Resolution 4 Mega Pixel | IR Illumination | Sensor size 1/2.9" | Lens Mount M12 | Min. Illumination 0.0006 Lux | Effective pixels 2688 (H) × 1520 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 166.2 × 70 × 70 mm

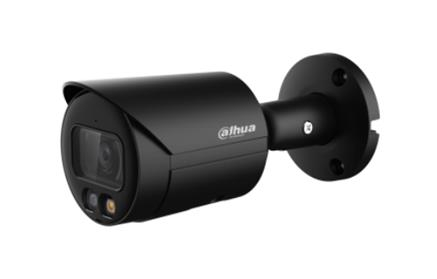

| Description | "4MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
> 4-MP 1/2.9"" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus."
|
| Страница производителя | www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HFW2449S-S-IL |
| Модель | HFW2449S-S-IL-0280B-B |
| Дизайн камеры | Bullet |
| Тип IP-камеры | HDTV/Megapixel/Outdoor |
| Эффективное количество пикселов | 4 Mega Pixel |
| ИК-подсветка | Yes |
| Размер сенсора | 1/2.9" |
| Крепление объектива | M12 |
| Светочувствительность | 0.0006 Lux |
| Кол-во эффективных пикселей | 2688 (H) × 1520 (V) |
| Выдержка (с электронным управлением) | Auto/Manual 1/3 s–1/100,000 s |
| RJ45 | 1 |
| Поддерживает емкость карт до | 256GB |
| Параметры питания | 12V/PoE |
| Требование к блоку/адаптеру питания | 12 VDC/PoE (802.3af) |
| Энергопотребление | 2.5 Watts |
| Окружающая обстановка | Outdoor |
| Диапазон рабчоих температур | –40 °C to +60 °C |
| Цвет | Black |
| Размер (физические параметры) | 166.2 × 70 × 70 mm |
| Вес | 0.48 kg |
| Вес брутто | 0.58 kg |
| Ширина коробки блока | 0.105 |
| Длина коробки блока | 0.21 |
| Высота коробки блока | 0.1 |
| Полное подробное описание | Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|IR Illumination|Sensor size 1/2.9"|Lens Mount M12|Min. Illumination 0.0006 Lux|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 166.2 × 70 × 70 mm |
| Код категории | FNC |
