Type Fixed/Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 2.8 mm; 3.6 mm | IR Illumination | Sensor size 1/2.9" CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.006 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Power options PoE/12V | Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) | Operating temperature range –40 °C to +60 °C | Dimensions 55.0 mm × Φ108.9 mm
| Description | IPC-HDBW2449F-AS-IL

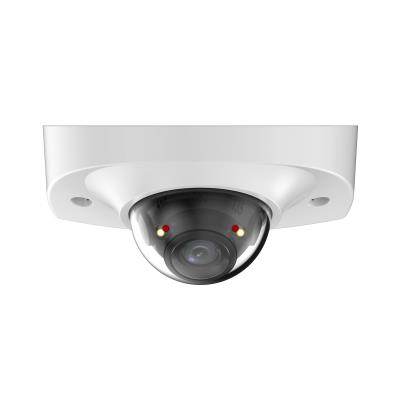

4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
>4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 and IK10 protection.
>SMD Plus. |
| Страница производителя | www.dahuasecurity.com/es/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDBW2449F-AS-IL |
| Модель | IPC-HDBW2449F-AS-IL-0280B |
| Дизайн камеры | Dome |
| Тип IP-камеры | Fixed/Outdoor |
| Эффективное количество пикселов | 4 Mega Pixel |
| Фокусное расстояние объектива | 2.8 mm; 3.6 mm |
| ИК-подсветка | Yes |
| Размер сенсора | 1/2.9" CMOS |
| Микрофон | Built-in |
| Крепление объектива | M12 |
| Светочувствительность | 0.006 Lux |
| Выдержка (с электронным управлением) | Auto/Manual 1/3 s–1/100,000 s |
| Входные порты | 1 |
| Выходные порты | 1 |
| Аудио-вход | 1 |
| Аудио-выход | 1 |
| RJ45 | 1 |
| Параметры питания | 12V/PoE |
| Требование к блоку/адаптеру питания | Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) |
| Энергопотребление | 2.3 Watts |
| Диапазон рабчоих температур | –40 °C to +60 °C |
| Размер (физические параметры) | 55.0 mm × Φ108.9 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001607 cubm |
| Product Net Weight | 0.41 kg |
| Unit Calculated Weight | 0.54 kg |
| Ширина коробки блока | 0.135 |
| Длина коробки блока | 0.14 |
| Высота коробки блока | 0.085 |
| Полное подробное описание | Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.9" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)|Operating temperature range –40 °C to +60 °C|Dimensions 55.0 mm × Φ108.9 mm |
| Код категории | FNC |
