Type Fixed/Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 2.7 mm–13.5 mm | IR Illumination | Sensor size 1/2.9" CMOS | Microphone Built-in | Min. Illumination 0.006 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Power options PoE/12V | Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE);Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) | Operating temperature range –30 °C to +60 °C | Dimensions 108.3 mm × Φ122 mm
| Description | IPC-HDW2449T-ZS-IL

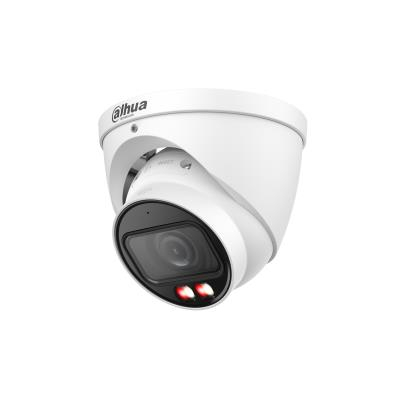

4MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
>4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 ×1440 (2560 × 1440)@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 40 m and the max. warm light distance is 40 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 protection.
>SMD Plus. |
| Страница производителя | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2449T-ZS-IL |
| Модель | IPC-HDW2449T-ZS-IL-27135 |
| Дизайн камеры | Eyeball |
| Тип IP-камеры | Fixed/Outdoor |
| Эффективное количество пикселов | 4 Mega Pixel |
| Чистое разрешение камеры | 2 - 4MP |
| Размер сенсора | 1/2.9" CMOS |
| Фокусное расстояние объектива | 2.7 mm–13.5 mm |
| Светочувствительность | 0.006 Lux |
| ИК-подсветка | Yes |
| Выдержка (с электронным управлением) | Auto/Manual 1/3 s–1/100,000 s |
| Микрофон | Built-in |
| RJ45 | 1 |
| Параметры питания | 12V/PoE |
| Требование к блоку/адаптеру питания | Basic: 2.3 W (12 VDC), 2.8 W (PoE);Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) |
| Энергопотребление | 2.3 Watts |
| Размер (физические параметры) | 108.3 mm × Φ122 mm |
| Вес | 0.69 kg |
| Вес брутто | 0.86 kg |
| Полное подробное описание | Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.9" CMOS|Microphone Built-in|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE);Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity)|Operating temperature range –30 °C to +60 °C|Dimensions 108.3 mm × Φ122 mm |
| Код категории | FNC |
