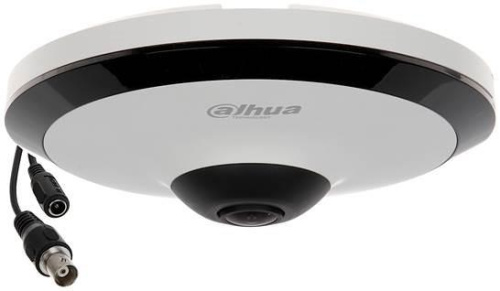

Pixel Resolution 5 Mega Pixel | Focal Length 1.4 mm | Sensor size 1/2.7" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.006 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xMicroSD Card Slot | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12V DC/PoE | Environment Outdoor | Operating temperature range –10°C to +50°C | Dimensions 44.6 mm × Φ126.2 mm
| Description | 1/2.7” 5MP progressive scan CMOS,
2592×1944 @ 25FPS
Minimum illumination: 0.006 Lux@F2.0 (Color, 30IRE). 0.0006 Lux@F2.0 (B/W, 30IRE), 0 Lux (Illuminator on)
Illumination Distance: 10 m
True Day/Night ICR, BLC/HLC/True WDR 120 dB/3D DNR
1.4 mm fixed lens (180°)
Memory Slot: Micro SD, Max 256GB,
1/1 Alarm In/Out, 1/1 Audio In/Out (+Built in Mic)
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
No protection, indoor use only, -10°C~+50°C, PoE / 12VDC power, 7.3W, metal + plastic case
IVS (Perimeter Protection): Tripwire; intrusion
Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Free IP monitoring software available
Advanced Intelligent Functions: Tripwire, Intrusion, Heat map, People counting
|
| Страница производителя | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/Panoramic-Series/Fisheye/IPC-EW5541-AS |
| Дизайн камеры | Other |
| Эффективное количество пикселов | 5 Mega Pixel |
| Фокусное расстояние объектива | 1.4 mm |
| Размер сенсора | 1/2.7" |
| Микрофон | Built-in |
| Крепление объектива | M12 |
| Светочувствительность | 0.006 Lux |
| Выдержка (с электронным управлением) | Auto/Manual 1/3 s–1/100,000 s |
| Входные порты | 1 |
| Выходные порты | 1 |
| Аудио-вход | 1 |
| Аудио-выход | 1 |
| MicroSD слот | 1 |
| Поддерживает емкость карт до | 256GB |
| Параметры питания | 12V/PoE |
| Требование к блоку/адаптеру питания | 12V DC/PoE |
| Энергопотребление | 7.3 Watts |
| Окружающая обстановка | Outdoor |
| Диапазон рабчоих температур | –10°C to +50°C |
| Размер (физические параметры) | 44.6 mm × Φ126.2 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003584 cubm |
| Product Net Weight | 0.299 kg |
| Unit Calculated Weight | 0.488 kg |
| Ширина коробки блока | 0.16 |
| Длина коробки блока | 0.16 |
| Высота коробки блока | 0.14 |
| Полное подробное описание | Pixel Resolution 5 Mega Pixel|Focal Length 1.4 mm|Sensor size 1/2.7"|Microphone Built-in|Lens Mount M12|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC/PoE|Environment Outdoor|Operating temperature range –10°C to +50°C|Dimensions 44.6 mm × Φ126.2 mm |
| Код категории | FNC |
