Type Fixed/HDTV/Megapixel | Pixel Resolution 6 Mega Pixel | Focal Length 2.8 mm; 3.6 mm | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0007 Lux | Effective pixels 3200 (H) × 1800 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Operating temperature range –40 °C to +60 °C | Dimensions 173.3 × 70.0 × 70.0 mm

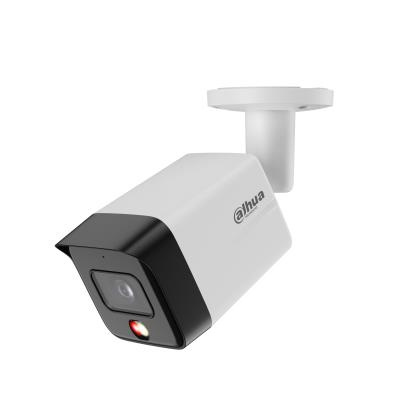

| Description | 6MP Entry Smart Dual Light Fixed-focal Bullet Network Camera
> 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection. |
| Страница производителя | www.dahuasecurity.com/la/products/All-Products/Network-Cameras/Entry-Series/6MP/IPC-HFW1639TC-A-IL=S6 |
| Модель | IPC-HFW1639TCAIL0280BS6 |
| Дизайн камеры | Bullet |
| Тип IP-камеры | Fixed/HDTV/Megapixel |
| Эффективное количество пикселов | 6 Mega Pixel |
| Фокусное расстояние объектива | 2.8 mm; 3.6 mm |
| ИК-подсветка | Yes |
| Размер сенсора | 1/2.7" CMOS |
| Микрофон | Built-in |
| Крепление объектива | M12 |
| Светочувствительность | 0.0007 Lux |
| Кол-во эффективных пикселей | 3200 (H) × 1800 (V) |
| Выдержка (с электронным управлением) | Auto/Manual 1/3 s–1/100,000 s |
| RJ45 | 1 |
| Параметры питания | 12V/PoE |
| Требование к блоку/адаптеру питания | 12 VDC/PoE (802.3af) |
| Диапазон рабчоих температур | –40 °C to +60 °C |
| Размер (физические параметры) | 173.3 × 70.0 × 70.0 mm |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.002571 cubm |
| Product Net Weight | 0.44 kg |
| Unit Calculated Weight | 0.615 kg |
| Ширина коробки блока | 0.105 |
| Длина коробки блока | 0.205 |
| Высота коробки блока | 0.095 |
| Полное подробное описание | Type Fixed/HDTV/Megapixel|Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 3200 (H) × 1800 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Operating temperature range –40 °C to +60 °C|Dimensions 173.3 × 70.0 × 70.0 mm |
| Код категории | FNC |
