Type Fixed/HDTV/Megapixel | Pixel Resolution 8 Mega Pixel | Focal Length 2.7 mm–12 mm | IR Illumination | Sensor size 1/1.8" CMOS | Microphone Built-in | Min. Illumination 0.0004 Lux | Effective pixels 3840 (H) × 2160 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xMicroSD Card Slot | 1xRJ45 | Supports card capacities up to 512GB | Power supply requirements 12 VDC/PoE (802.3af)/ePoE | Environment Outdoor | Operating temperature range –30 °C to +60 °C | Colour White | Dimensions 108.3 mm × Φ122 mm
| Description | IPC-HDW5842T-ZE

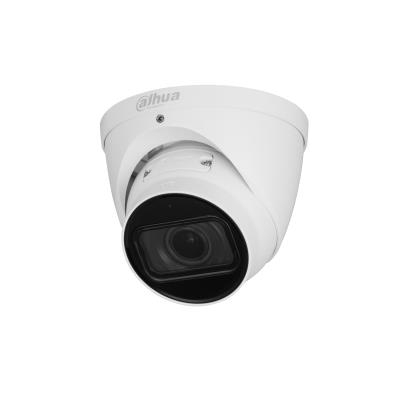

8MP IR Vari-focal Eyeball WizMind Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0. |
| Страница производителя | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/8MP/IPC-HDW5842T-ZE=S3 |
| Модель | IPC-HDW5842T-ZE-2712-S3 |
| Дизайн камеры | Eyeball |
| Тип IP-камеры | Fixed/HDTV/Megapixel |
| Эффективное количество пикселов | 8 Mega Pixel |
| Фокусное расстояние объектива | 2.7 mm–12 mm |
| ИК-подсветка | Yes |
| Размер сенсора | 1/1.8" CMOS |
| Микрофон | Built-in |
| Светочувствительность | 0.0004 Lux |
| Кол-во эффективных пикселей | 3840 (H) × 2160 (V) |
| Выдержка (с электронным управлением) | Auto/Manual 1/3 s–1/100,000 s |
| MicroSD слот | 1 |
| RJ45 | 1 |
| Поддерживает емкость карт до | 512GB |
| Требование к блоку/адаптеру питания | 12 VDC/PoE (802.3af)/ePoE |
| Окружающая обстановка | Outdoor |
| Диапазон рабчоих температур | –30 °C to +60 °C |
| Цвет | White |
| Размер (физические параметры) | 108.3 mm × Φ122 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003243 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 0.93 kg |
| Ширина коробки блока | 0.155 |
| Длина коробки блока | 0.155 |
| Высота коробки блока | 0.135 |
| Полное подробное описание | Type Fixed/HDTV/Megapixel|Pixel Resolution 8 Mega Pixel|Focal Length 2.7 mm–12 mm|IR Illumination|Sensor size 1/1.8" CMOS|Microphone Built-in|Min. Illumination 0.0004 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 512GB|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions 108.3 mm × Φ122 mm |
| Код категории | FNC |
