Channels 16 | Drives/bays 2 | 1x15pin D-sub | 1xHDMI | 2xUSB 2.0 | 1xRJ45 | 4xAlarm In | 2xAlarm Out | Power supply requirements 100–240 VAC, 47-63 Hz | Dim. 375.0 mm × 329.3 mm x 53.0 mm | Temp. range –10 °C to +55 °C
Description | - 16 IP channel max, up to 16MP resolution
- Max: 256Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 2 SATA III ports, up to 16 TB for a single HDD
- PoE 16 ports, 10/100 Mbps, IEEE 802.3 af/at, total 130W max
- No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported
|
Страница производителя | www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-16P-EI |

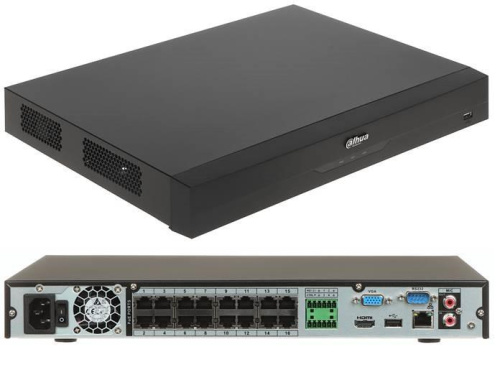

Модель | NVR4216-16P-EI |
Количество каналов | 16 |
Количество дисков/отсеков | 2 |
15-контактный разъем D-sub | 1 |
Входные порты | 4 |
Выходные порты | 2 |
HDMI | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
PoE порты | 16 |
Требование к блоку/адаптеру питания | 100–240 VAC, 47-63 Hz |
Размер (физические параметры) | 375.0 mm × 329.3 mm x 53.0 mm |
Диапазон рабчоих температур | –10 °C to +55 °C |
Вес | 2.6 kg |
Вес брутто | 4.2 kg |
Ширина коробки блока | 0.145 |
Длина коробки блока | 0.455 |
Высота коробки блока | 0.42 |
Полное подробное описание | Channels 16|Drives/bays 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 100–240 VAC, 47-63 Hz|Dim. 375.0 mm × 329.3 mm x 53.0 mm|Temp. range –10 °C to +55 °C |
Код категории | NVR |
