Channels 16 | SATA | Integrated LAN Gigabit | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xeSATA | 1xRJ45 | Power consumption 6.2 Watts | Dim. 330 × 285 × 45 mm | Temp. range -10–55 °C | Colour Black
Description | VIGI NVR2016H-16P

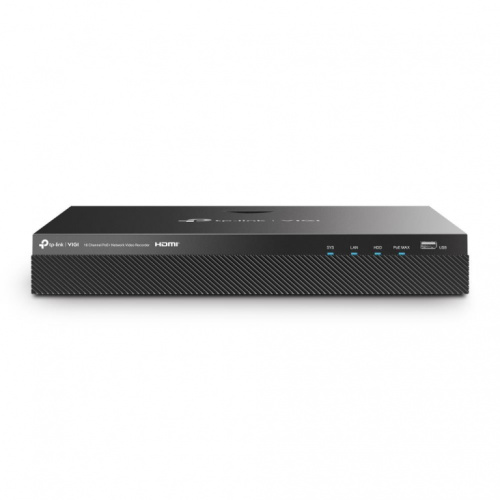

VIGI 16 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
|
Страница производителя | www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16p/ |
Модель | VIGI NVR2016H-16P |
Количество каналов | 16 |
САТА | Yes |
Интегрированная сетевая карта | Gigabit |
15-контактный разъем D-sub | 1 |
Аудио-вход | 1 |
Аудио-выход | 1 |
eSATA | 1 |
HDMI | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
PoE+ порты | 16 |
Энергопотребление | 6.2 Watts |
Размер (физические параметры) | 330 × 285 × 45 mm |
Диапазон рабчоих температур | -10–55 °C |
Цвет | Black |
Вес | 1.9 kg |
Вес брутто | 3.2 kg |
Ширина коробки блока | 0.14 |
Длина коробки блока | 0.4 |
Высота коробки блока | 0.35 |
Полное подробное описание | Channels 16|SATA|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xeSATA|1xRJ45|Power consumption 6.2 Watts|Dim. 330 × 285 × 45 mm|Temp. range -10–55 °C|Colour Black |
Код категории | NVR |
